Description

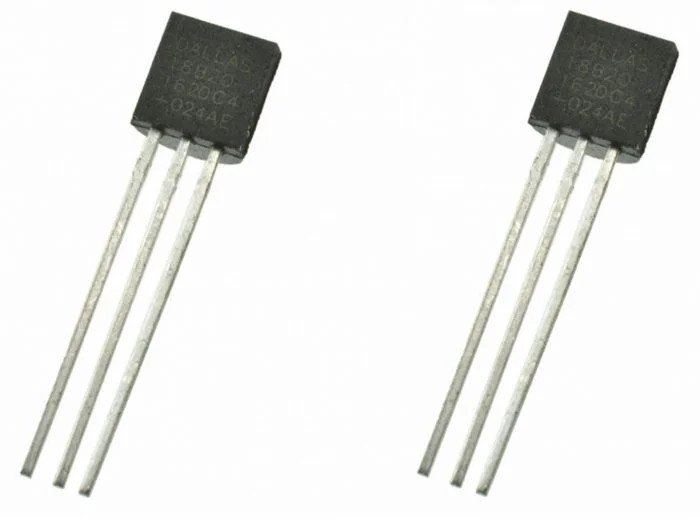

A pair of DS18B20 digital temperature sensors in a compact TO-92 package.
These reliable sensors communicate via a single 1 Wire data bus and support power through the data line (“parasite power”), making them ideal for Arduino, Raspberry Pi, and other microcontroller applications.
Each sensor includes a unique 64-bit serial code, enabling multiple sensors on a single bus perfect for scalable temperature sensing projects.
- Product: DS18B20 Digital Temperature Sensor – TO-92
- Type: Digital 1-Wire Temperature Sensor
- Quantity: 2 Sensors
- Accurate digital temperature sensor with ±0.5°C precision
- Communicates over a single 1-Wire bus
- Can be powered via data line (parasite power)
- Unique 64-bit ID per sensor for multi-device setups
- Compact TO-92 package
- Wide operating temperature range (-55°C to +125°C)

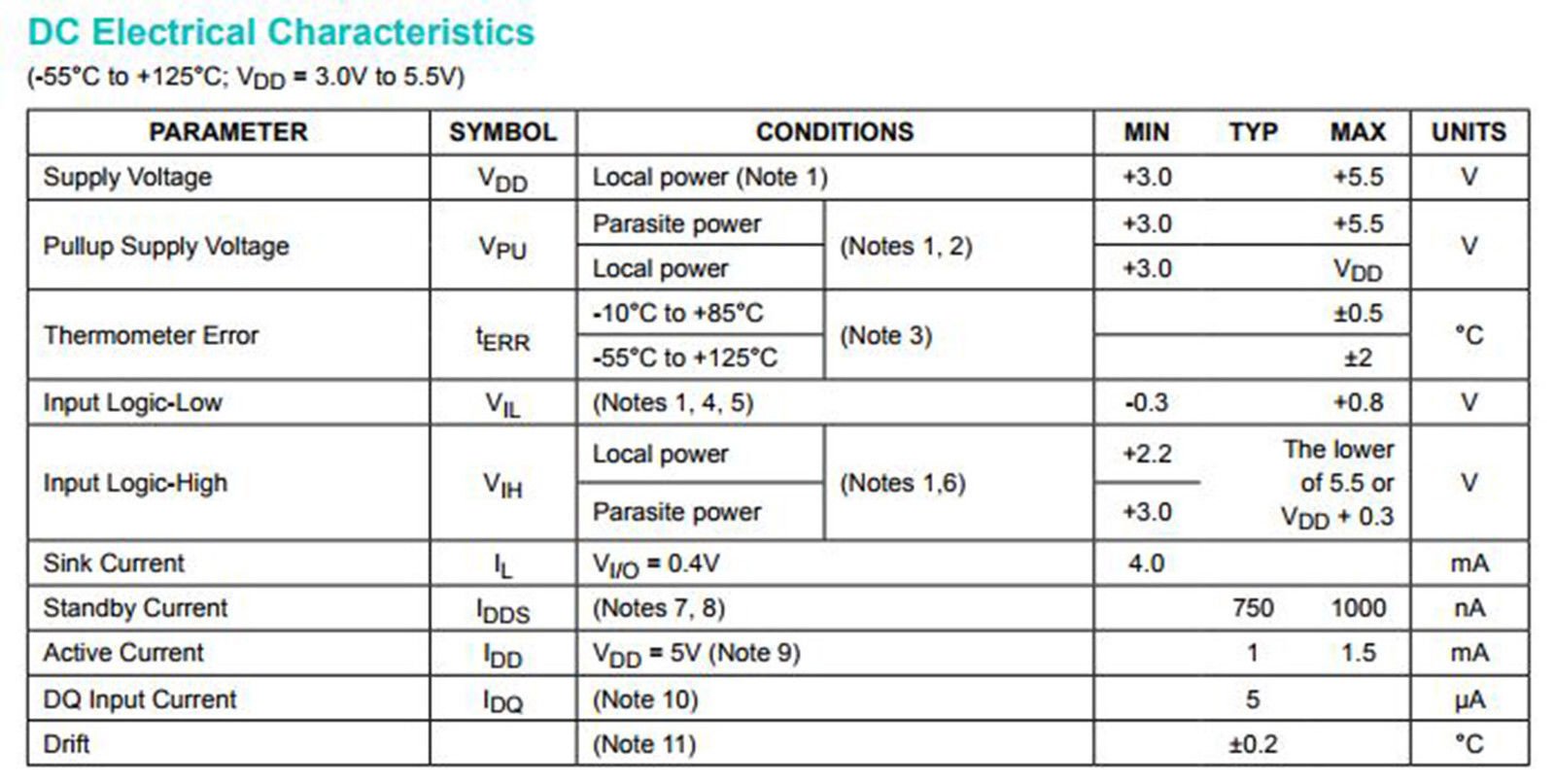

- Voltage Range: 3.0 – 5.5V
- Current Draw: 1 – 1.5mA
- Accuracy: ±0.5°C (-10°C to +85°C), ±2°C (max range)
- Resolution: 9 to 12-bit selectable
- Output: Digital

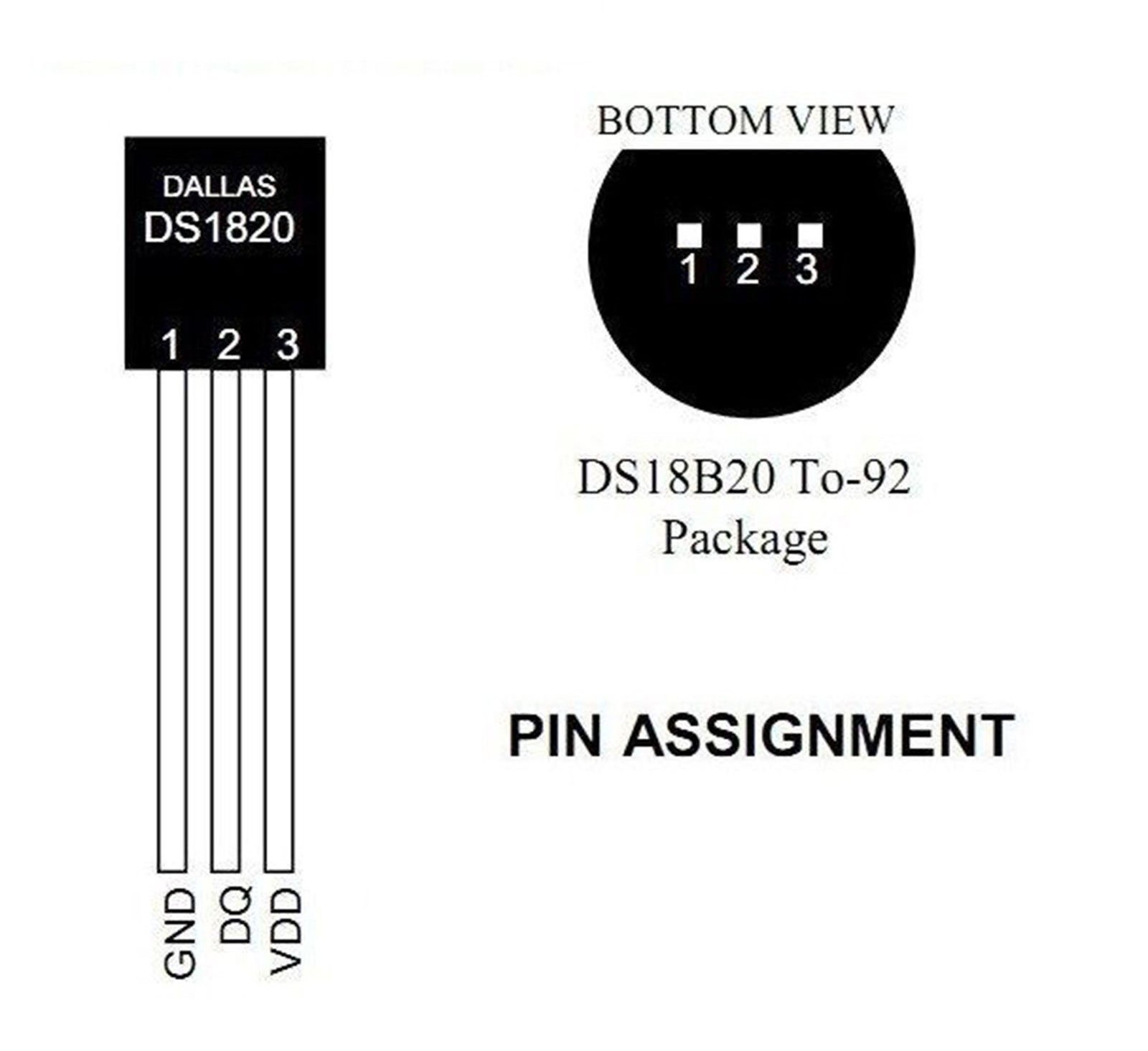

- Pins: 3 (VCC, GND, Data)
- Package: TO-92
What’s Included:
- 2 x DS18B20 Digital Temperature Sensors (TO-92)
Great For:
- Temperature logging
- Multi-point temperature measurement systems
- Educational electronics and prototyping
Usage Tips:
- Connect multiple DS18B20 sensors to the same data line
- Use a 4.7kΩ pull-up resistor on the data pin for stable communication
- Ideal for use in long-range sensor networks or embedded systems
- Use parasite power mode for minimal wiring in remote locations
