Description

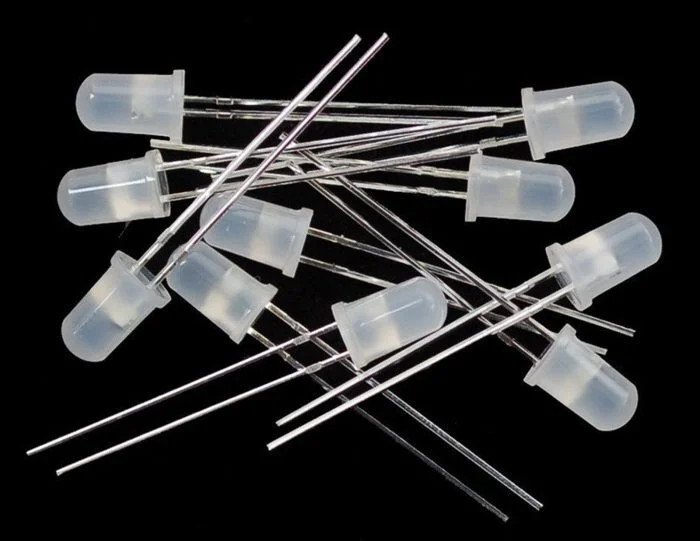

These 5mm diffused RGB rainbow LEDs are perfect for eye catching lighting effects with no controller required.
Each LED contains an integrated PWM chip that automatically cycles through 8 vibrant colours with a slow flashing pattern, making them ideal for decorative projects, DIY gadgets, and educational demonstrations.
Just connect them to power no coding or controllers needed!
- LED Type: RGB Rainbow Flashing
- Flashing Pattern: Slow cycle through 8 colours
- Pins: 2-pin – just add power to light up
- Lens: Diffused for soft, blended lighting
- Size: 5mm round
- Self-Contained PWM IC: No external controller required
- Electrical & Optical Specs:
- Forward Voltage: 3.0V – 3.8V
- Forward Current: 20mA (typical)
- Max Continuous Forward Current: 30mA
- Max Peak Forward Current: 75mA
- Reverse Voltage: 5V – 6V
- Luminous Intensity (typ.): ~2000mcd
- Life Rating: Up to 100,000 hours
- Viewing Angle: 160–180°
- Wavelengths:
- Red: 625–630nm
- Green: 515–520nm
- Blue: 460–470nm
What’s Included:
- 10 x 5mm Diffused RGB Slow Flashing 2-Pin LEDs
Great For:
- Mood lighting and ambient effects
- Decorations and display projects
- Arduino-free colour cycling
- Toys, props, and crafts
- STEM kits and visual learning demos
Usage Tips:
- Connect directly to 3V–3.3V or 5V (with resistor for current limiting)
- Not addressable – all LEDs flash independently
- Use in parallel for mixed visual effects
