Description

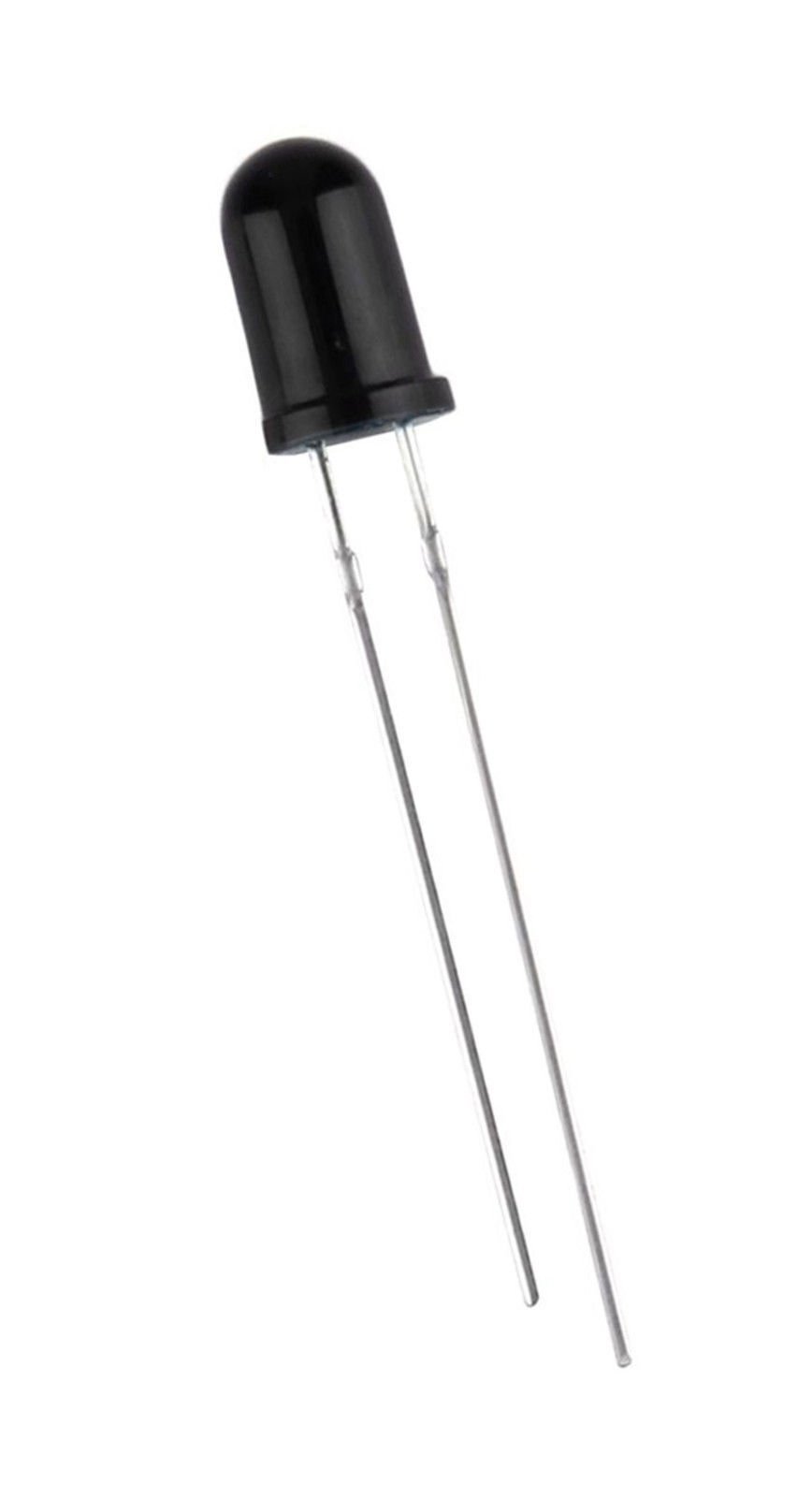

These high speed 5mm Infrared Receiver LEDs operate at 940nm wavelength with a black plastic lens and daylight filter, making them ideal for IR radiation detection, remote control systems, and air data transmission.
Designed for excellent radiant sensitivity and fast response, these IR photodiodes suit a variety of electronic projects and sensor applications requiring precise infrared signal reception.
- Type: 5mm Infrared Receiver LED
- Wavelength: 940nm (Infrared)
- Lens: Black plastic lens with daylight filter
- Power Consumption: 0.15W
- Receiving Angle: 40°
- Forward Voltage (VF): 1.1V – 1.4V
- Maximum Power: 70mW
- Maximum Forward Current: 30mA
- Maximum Reverse Voltage: 5V
- Maximum Pulse Current Peak: 75mA
What’s Included:

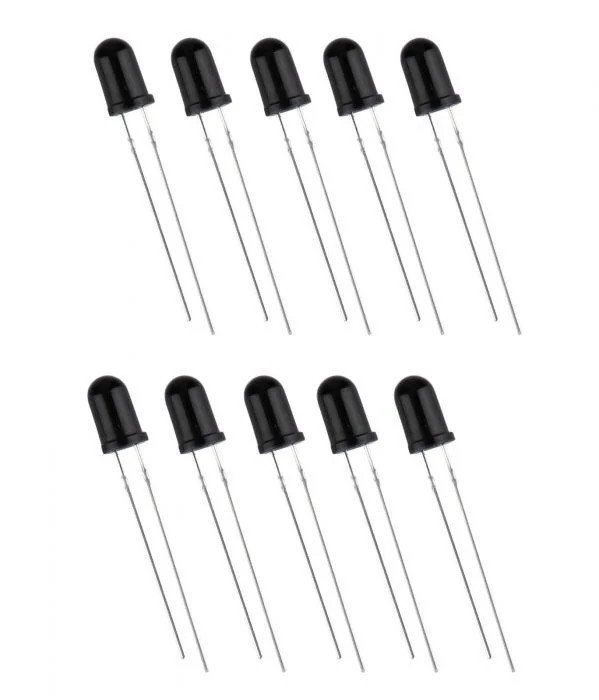

- 10 x 5mm Infrared Receiver LED Diodes (940nm)
Ideal For:
- IR remote control systems
- Air data transmission
- Infrared signal detection
- Electronic sensing projects
- Robotics and automation
Usage Tips:
- Ensure correct polarity when connecting to circuits
- Use suitable current-limiting resistor to prevent damage
- Ideal for environments requiring high speed IR detection with ambient light filtering
- Perfect for DIY IR communication and sensor systems
