Description

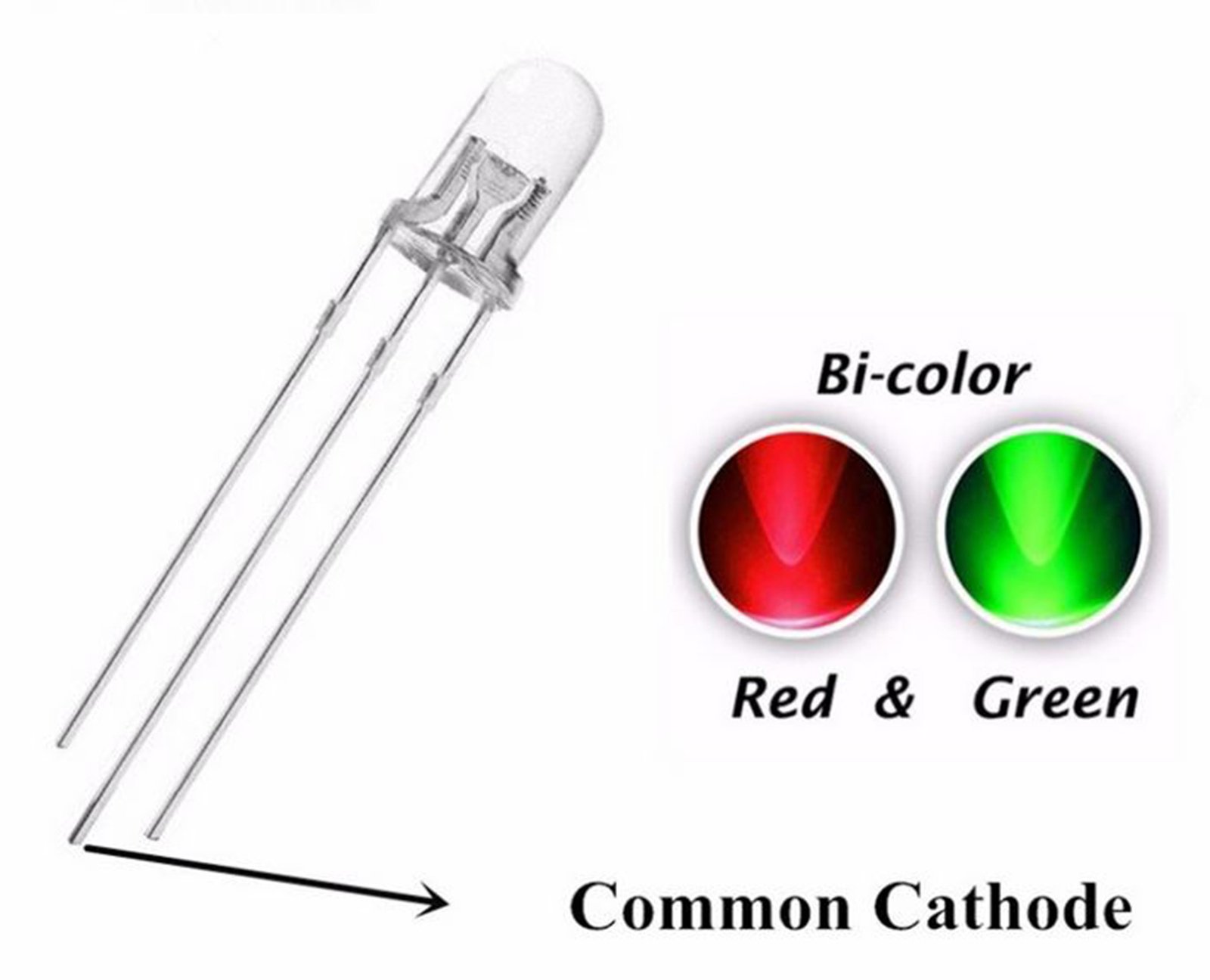

These compact 5mm bi colour LEDs feature both red and green light in a single clear lens with a common cathode configuration.
Perfect for status indicators, DIY electronics, and multicolour signal displays.
Each LED has separate anodes for red and green, allowing individual or mixed control to produce red, green, or amber output depending on how they’re driven.

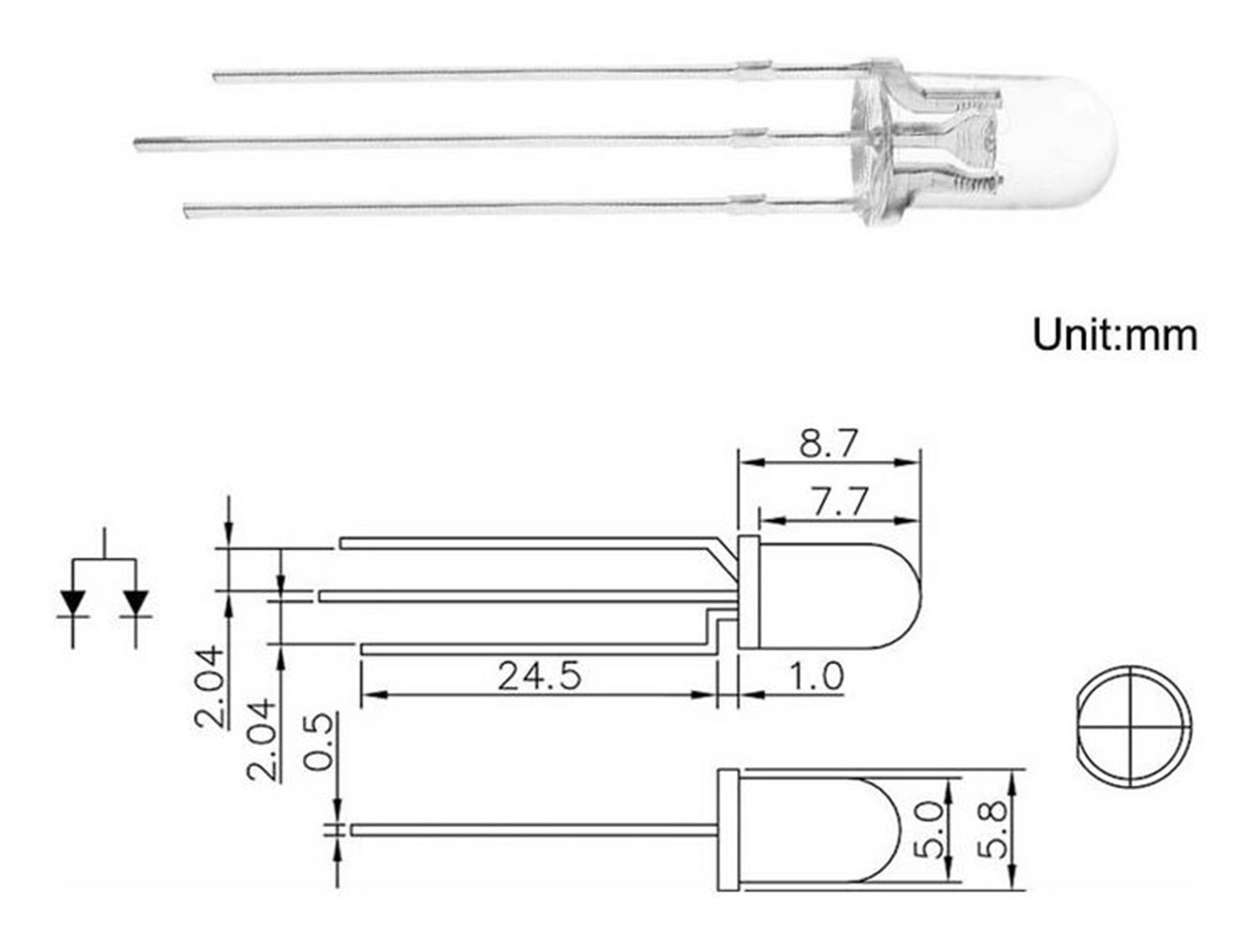

- Type: 5mm Bi-Colour LED (Red & Green)
- Lens: Water Clear, 5mm Diameter
- Configuration: Common Cathode, 3 Pin
- Max Forward Voltage:
- Red: 2.0V – 2.2V
- Green: 3.0V – 3.2V
- Max Forward Current: 20mA per colour
- Luminous Intensity:
- Red: 1000 – 2000mcd
- Green: 4000 – 5000mcd
- Viewing Angle: 120° Wide Angle
What’s Included:

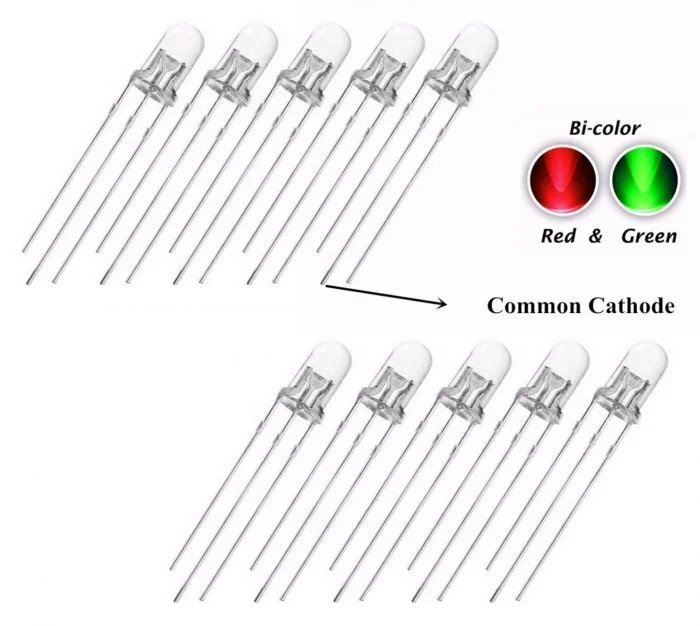

- 10 x 5mm Bi-Colour Red & Green Clear LEDs – Common Cathode, 3-Pin
Great For:
- Dual-Colour Status Indicators
- Arduino and Raspberry Pi Projects
- Control Panels & User Interfaces
- DIY Electronics & Model Making
- Educational STEM Projects
Usage Tips:
- Common cathode pin connects to ground (GND)
- Control red and green pins individually with current-limiting resistors
- Combine both colours for a third (amber/yellow) output
- Ideal for breadboarding and through-hole prototyping
