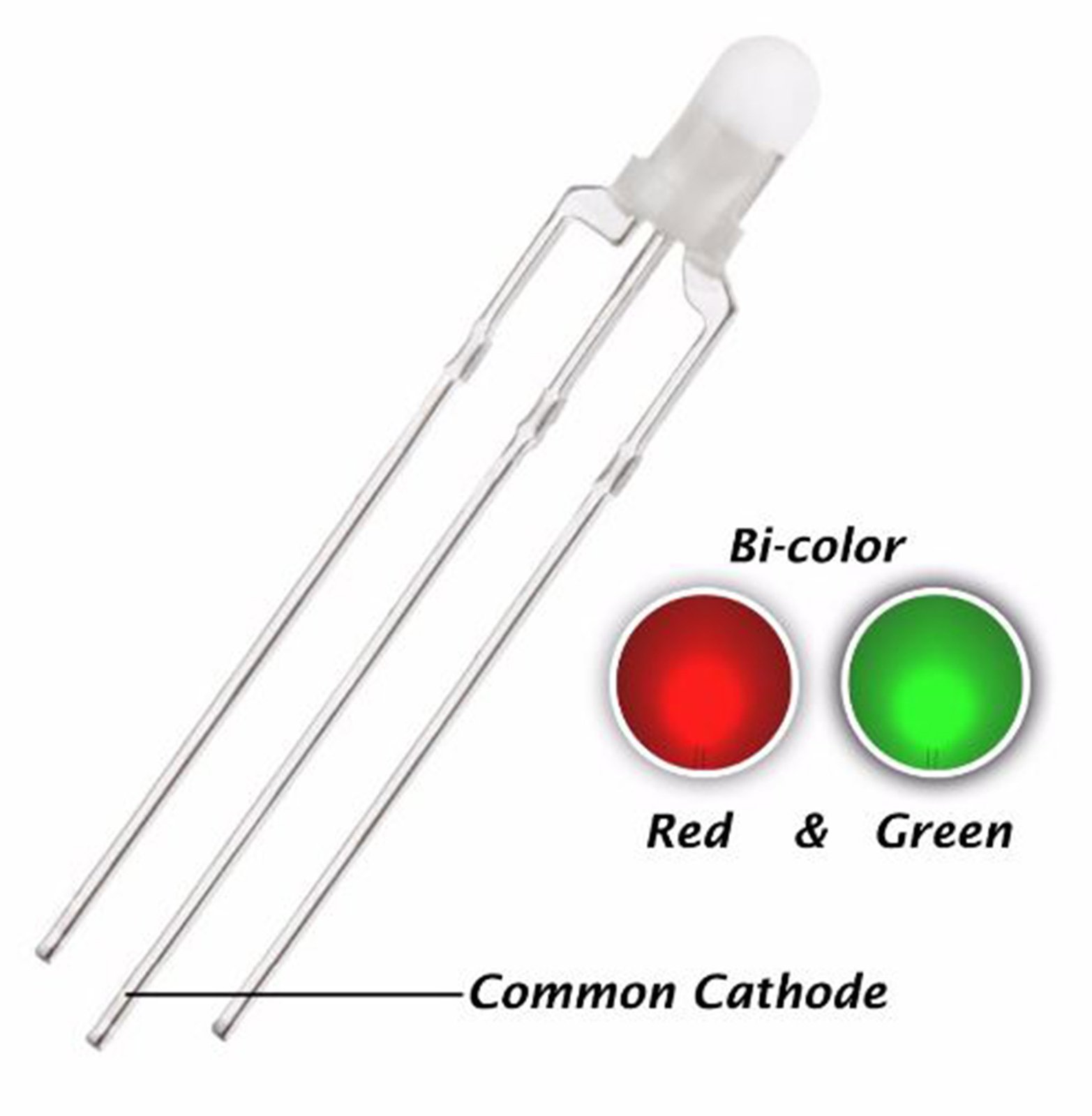

10 x 3mm Bi-Colour LED – Red & Green – Diffused Lens – Common Cathode – 3-Pin
These 3mm Bi-Colour LEDs combine red and green light outputs in a compact, through-hole package with a soft diffused lens for a wide 120° viewing angle.
With a common cathode configuration, they’re perfect for creating dual-colour indicators, status lights, or blending to amber when both colours are lit simultaneously.
Ideal for use in Arduino, Raspberry Pi, and other DIY electronics projects.
- Model: 3mm Bi-Colour LED (Red & Green)
- Lens Type: Diffused

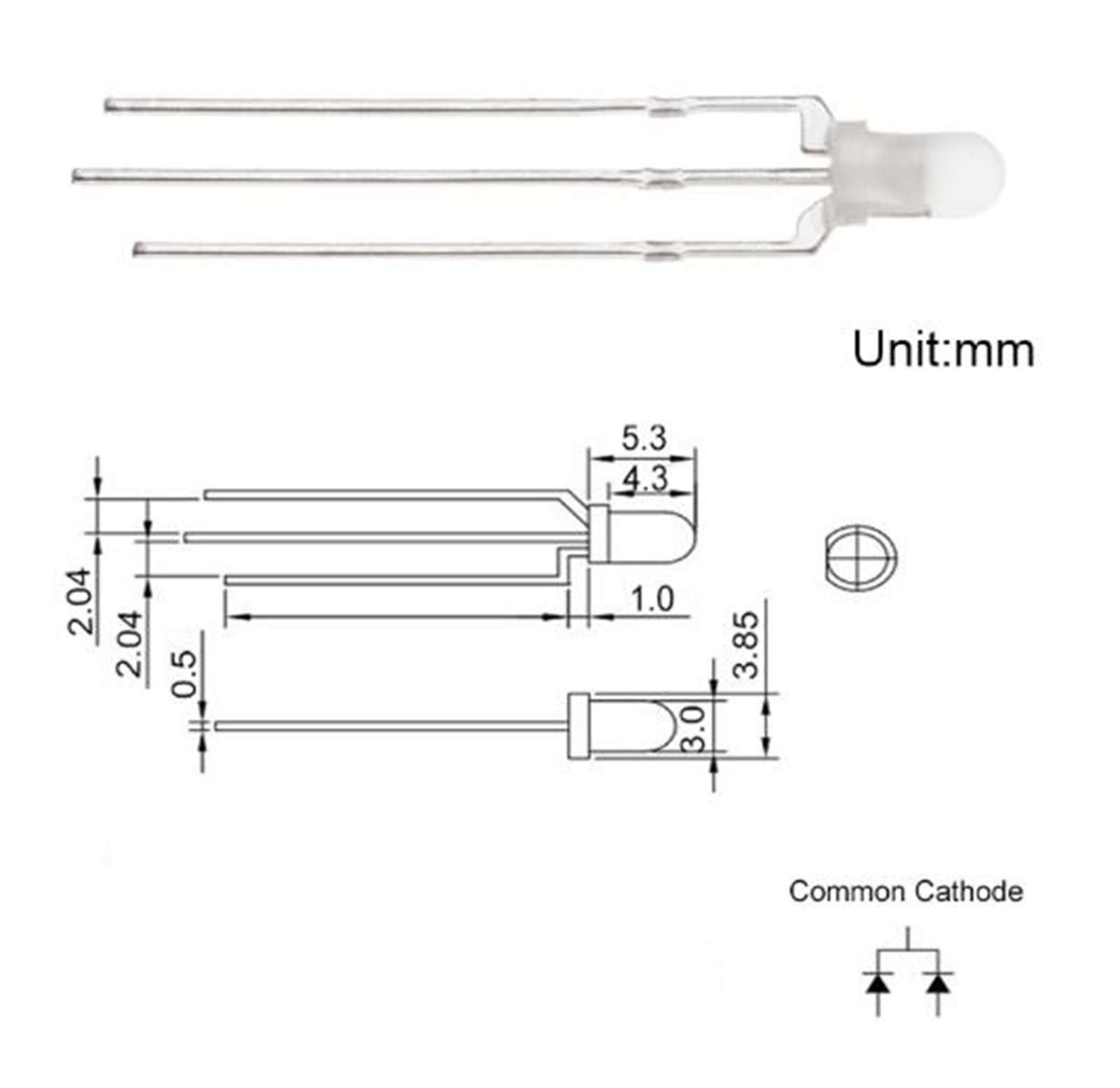

- Diameter: 3mm
- Pin Configuration: 3-Pin – Common Cathode
- Forward Voltage (Red): 2.0V – 2.2V
- Forward Voltage (Green): 3.0V – 3.2V
- Max Forward Current: 20mA per colour
- Luminous Intensity (Red): 1000 – 2000mcd
- Luminous Intensity (Green): 4000 – 5000mcd
- Viewing Angle: 120°
- Package Type: Through Hole
- Polarity: Common Cathode
What’s Included:

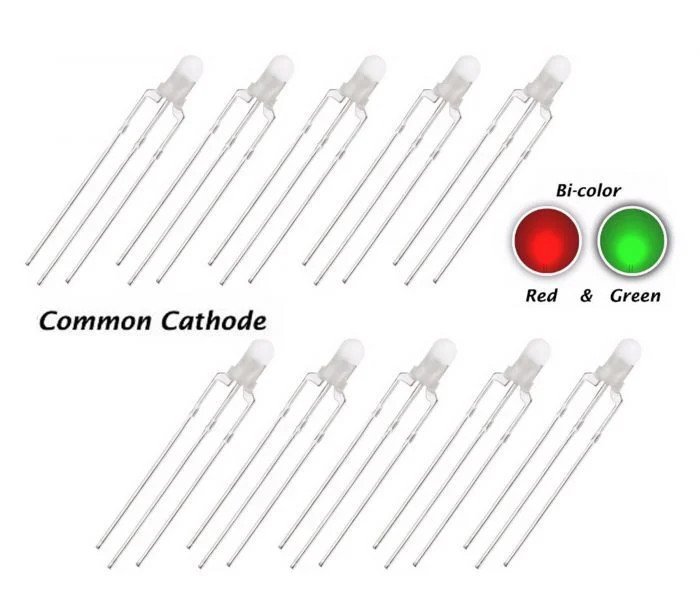

- 10x 3mm Bi-Colour Red & Green LEDs – Common Cathode – Diffused – 3 Pin
Great For:
- Dual-Colour Signal Indicators
- Arduino & Microcontroller Projects
- Breadboarding & Prototyping
- Electronics Learning Kits
- Model Making & Custom Displays
- Educational STEM Kits
Usage Tips:
- Connect the common cathode to ground (GND)
- Use series resistors (e.g. 220Ω–470Ω) for each colour pin
- Control red and green independently or blend for amber output
- Suitable for use on breadboards, PCBs, or panel-mount designs
