Description
The LM1875T is a high-performance 5 pin TO-220 audio amplifier IC capable of delivering up to 30W output power with very low distortion and exceptional audio fidelity.
Perfect for use in HiFi audio projects, speaker drivers, or custom amplifier builds.
- Product: LM1875T Mono Audio Amplifier IC

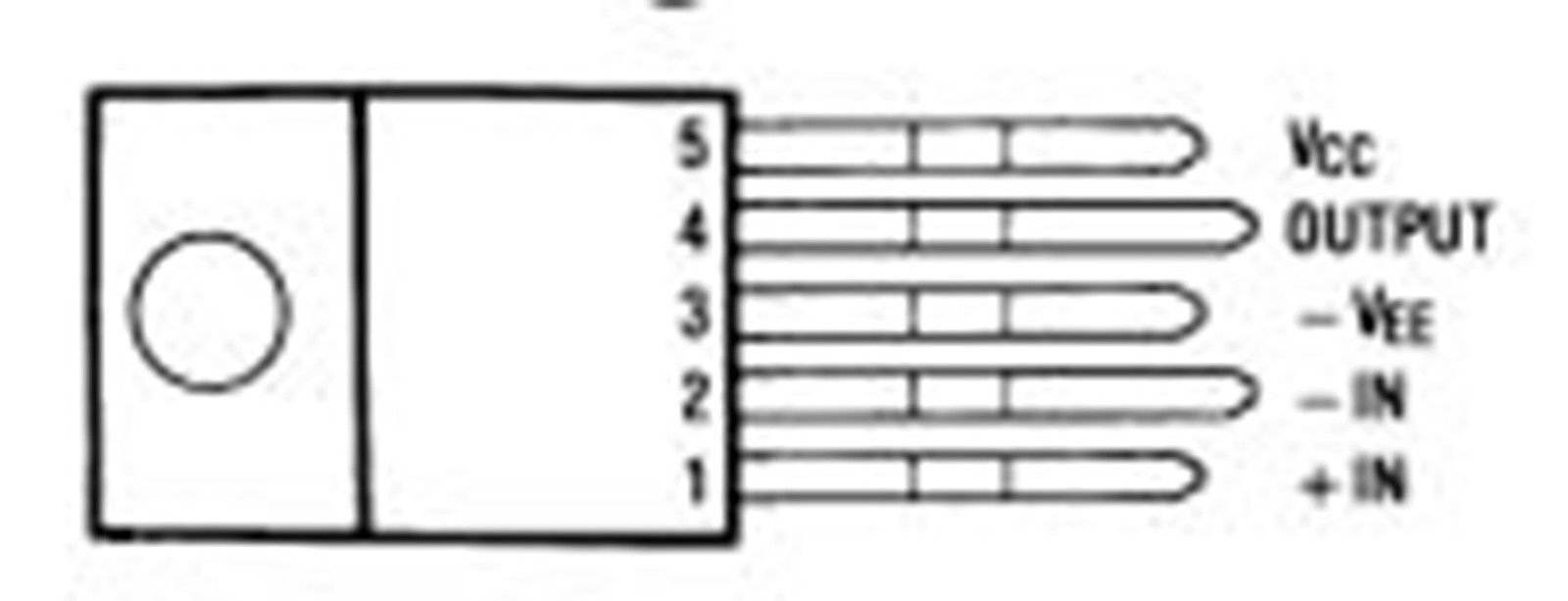

- Type: 5-Pin TO-220 Package
- Quantity: 1 x IC
- Output Power: Up to 30W
- Channels: Mono (1-Channel)

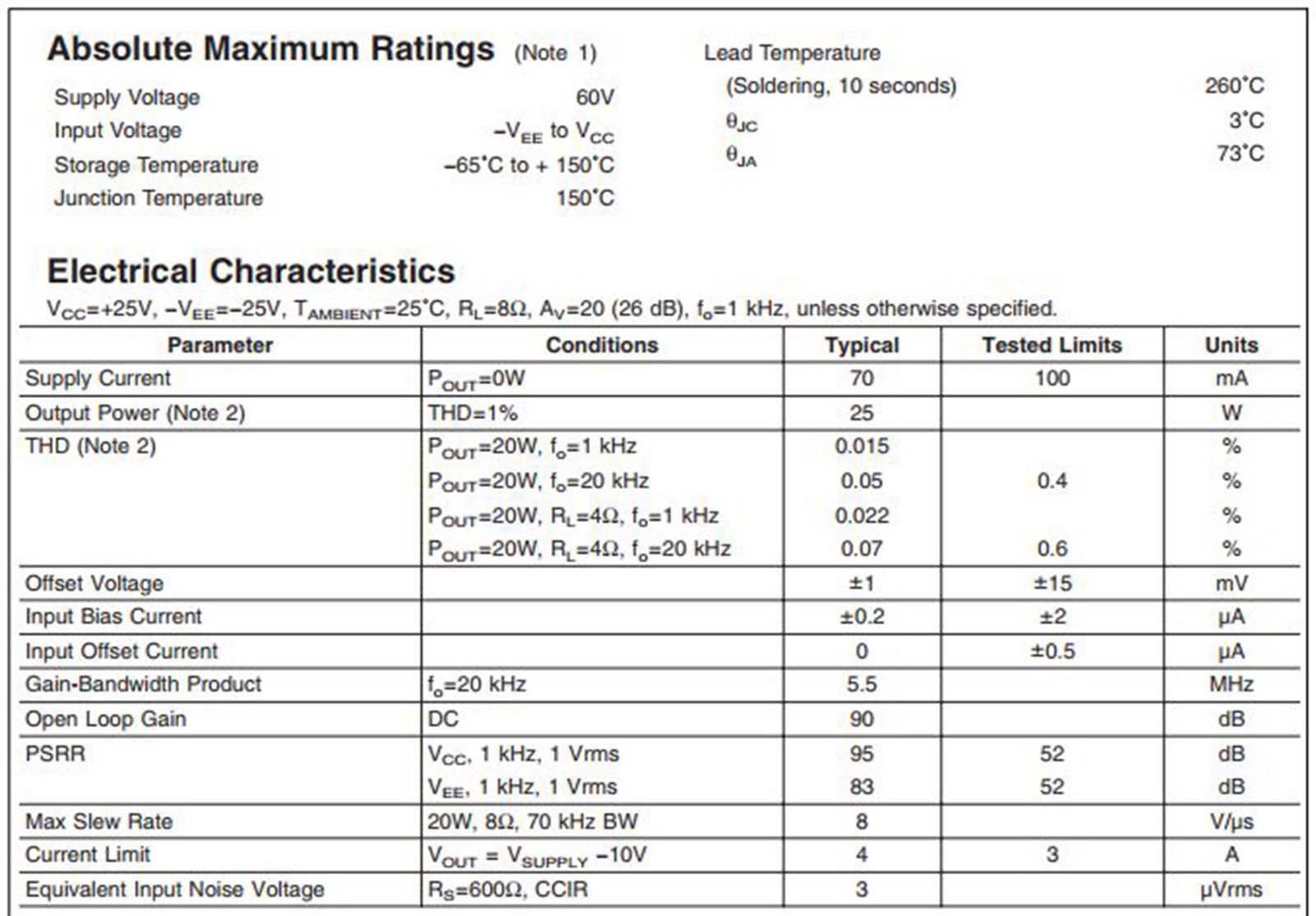

- High output power: up to 30 watts
- Low distortion: 0.015% at 20W, 1kHz
- Wide power bandwidth: 70kHz
- Excellent ripple rejection: 94dB
- High current capability: up to 4A
- Wide operating voltage: 16V – 60V
- Internal thermal shutdown and current limiting
- Built-in AC and DC short circuit protection
- Internally compensated and stable at gains ≥10

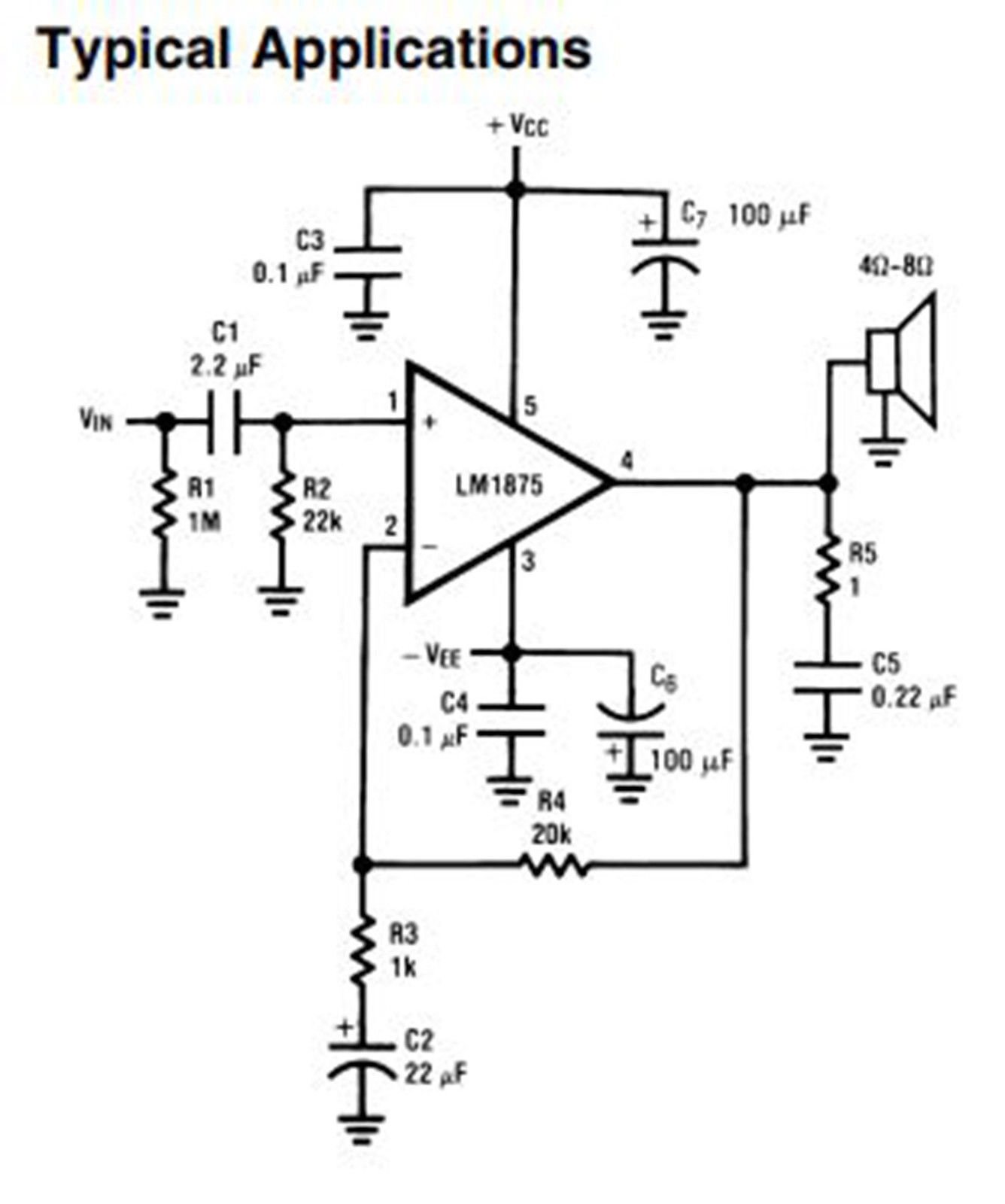

Applications:
- HiFi audio systems
- Speaker driver circuits
- Home audio amplifiers
- DIY amplifier projects
- High-performance mono amp setups
What’s Included:
- 1 x LM1875T Mono Audio Power Amplifier IC (TO-220 Package)
Usage Tips:
- Ensure adequate heatsinking for optimal performance
- Use with a suitable power supply in the 16V–60V range
- Ideal for custom amplifier projects or audio upgrades
