Description
The SN74HC165 DIP16 Through Hole ICs are 8 bit parallel load shift registers that allow data to be loaded in parallel and shifted out serially.
Perfect for expanding input ports in microcontroller and digital logic projects, these ICs enable efficient data handling and communication.
- 8-bit parallel-in, serial-out shift register

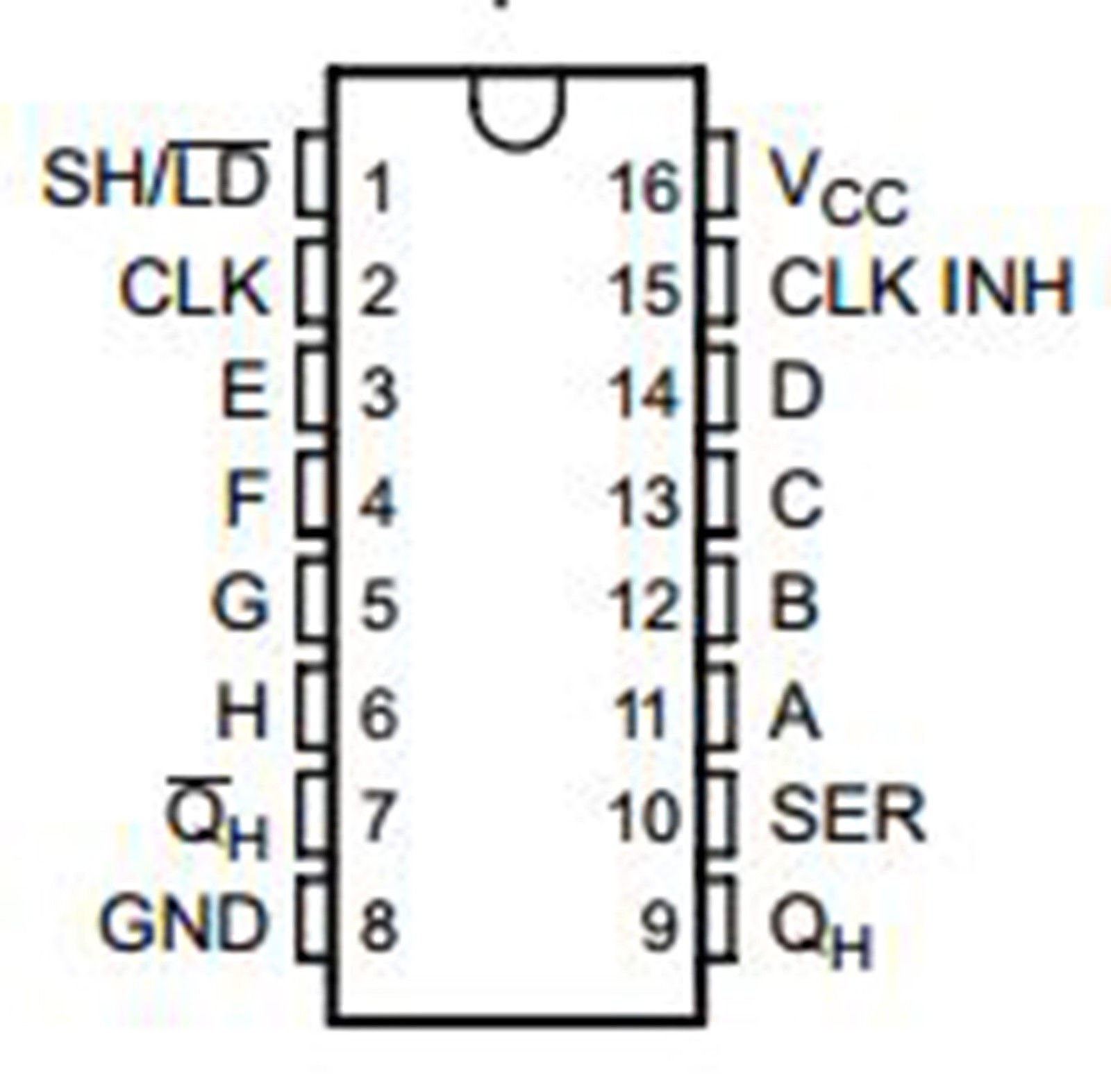

- Parallel loading enabled via eight individual data inputs (A–H)
- Shift/load (SH/LD) input controls parallel or serial operation
- Clock-inhibit (CLK INH) function for flexible clock control
- Complementary serial output (QH)
- Clocking on low-to-high transitions of CLK or CLK INH
- Wide operating voltage range: 2V to 6V
- Outputs capable of driving up to 10 LSTTL loads
- Low power consumption: max 80µA
- Fast typical propagation delay: 13ns
- Low input current: max 1µA
- Package: DIP16 through hole
- Technical Specifications:
- Operating Voltage: 2 V to 6 V
- Max Output Drive: ±4mA at 5 V
- Package Type: DIP16 Through Hole
- Low Power Consumption and High Speed
What’s Included:

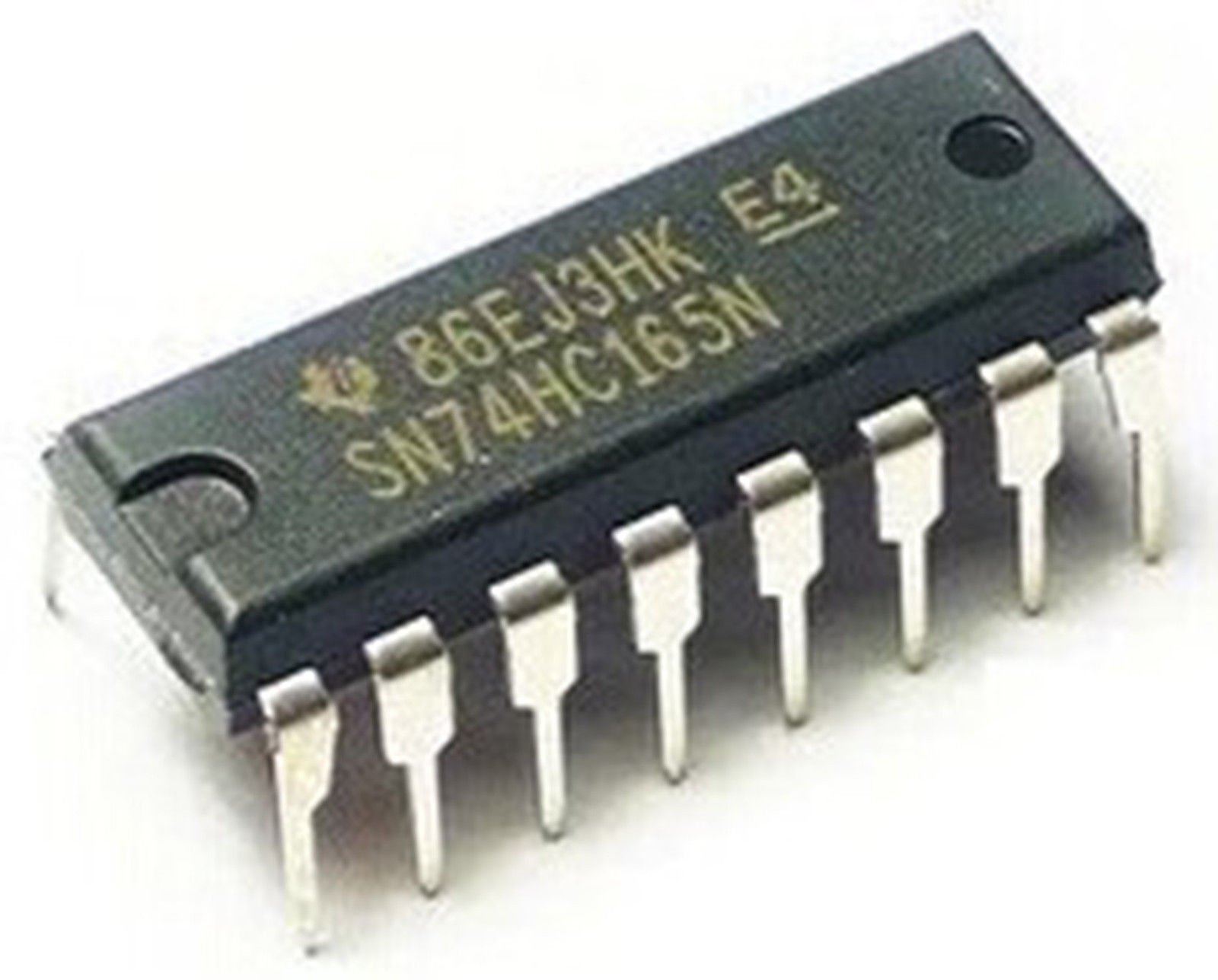

- 5 x SN74HC165N 8-bit Parallel-In / Serial-Out Shift Register ICs (DIP16)
Ideal For:
- Microcontroller I/O expansion
- Digital data shifting and multiplexing
- Data acquisition systems
- Robotics and automation projects
- Educational and prototyping applications
Usage Tips:
- Use with microcontrollers like Arduino, PIC, or ARM for input expansion
- Ensure proper clock and load timing for reliable data transfer
- Combine with output shift registers for full data bus control
- Suitable for low voltage and low power digital circuits
