Description
The SN74HC14N is a high speed CMOS Hex Schmitt Trigger Inverter IC featuring six independent inverters with Schmitt-trigger inputs.
These inputs transform slowly changing or noisy input signals into sharp digital transitions perfect for signal conditioning and waveform shaping.
This reliable and widely used chip is ideal for breadboard prototyping or through hole PCB applications in both 3.3V and 5V logic systems.
- IC Type: Hex Inverter with Schmitt Trigger Inputs
- Model: SN74HC14N / 74HC14N

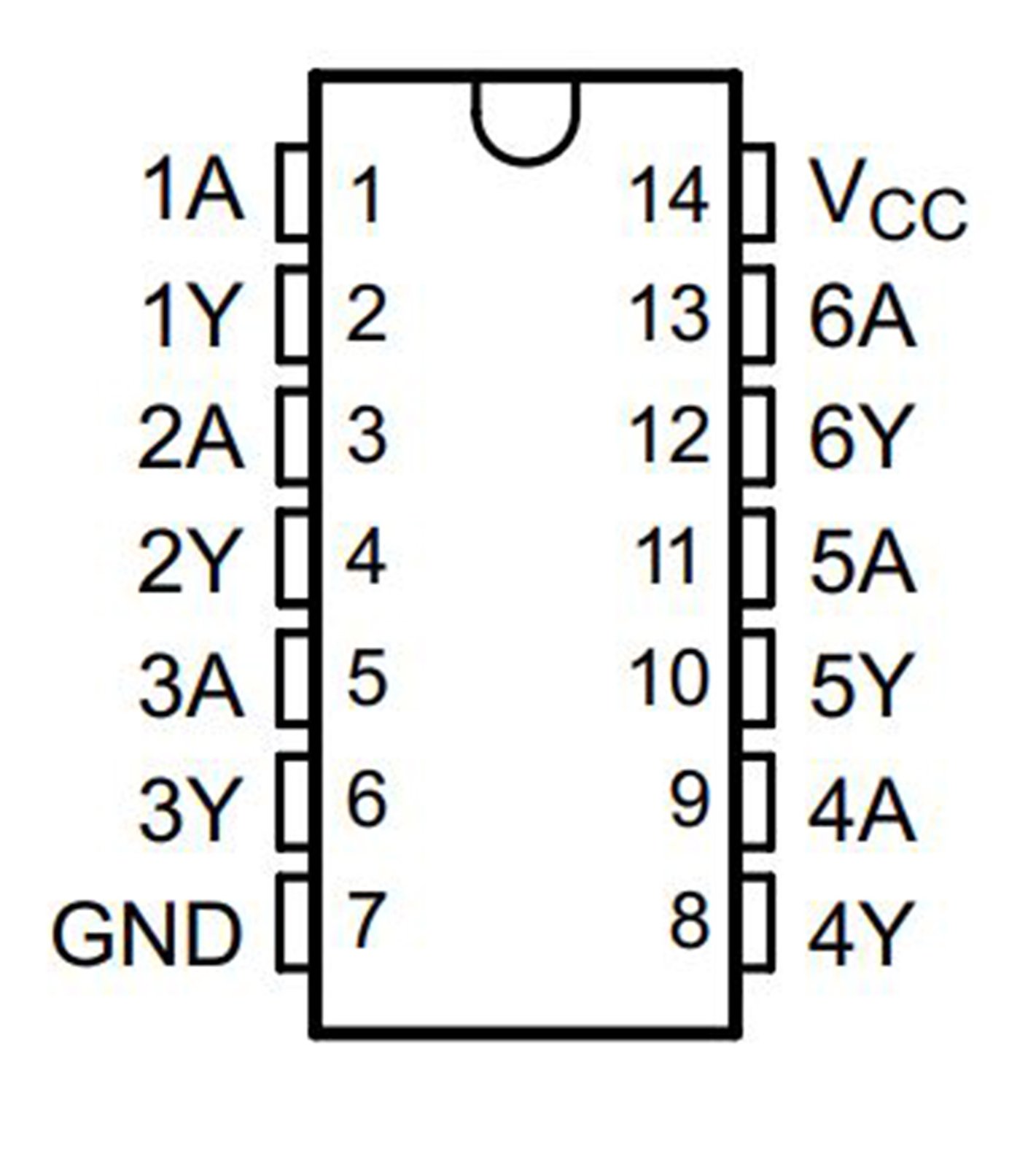

- Package: DIP14 – Dual In-Line Package (Through Hole)
- Logic Family: HC (High-Speed CMOS)
- Voltage Range: 2V to 6V
- Typical Propagation Delay: ~14 ns
- Low Power Consumption: ICC max 20 µA
- Input Hysteresis: Improves noise immunity
- Input Type: TTL & CMOS compatible
- Pin Pitch: 2.54mm – Breadboard Friendly
- Quantity: 5 x ICs
What’s Included:
- 5 x SN74HC14N Hex Schmitt Trigger ICs (DIP14)
Great For:
- Signal Conditioning & Wave Shaping
- Debouncing Mechanical Switches
- Noise Filtering
- Oscillator & Pulse Generator Circuits
- DIY Electronics & Prototyping
- STEM Education & Logic Design
Usage Tips:
- Excellent for cleaning up noisy or analog inputs
- Use in projects requiring digital signal conversion or edge detection
- Easily mounted on breadboards or stripboards
- Combine with other 74-series ICs for full digital systems
