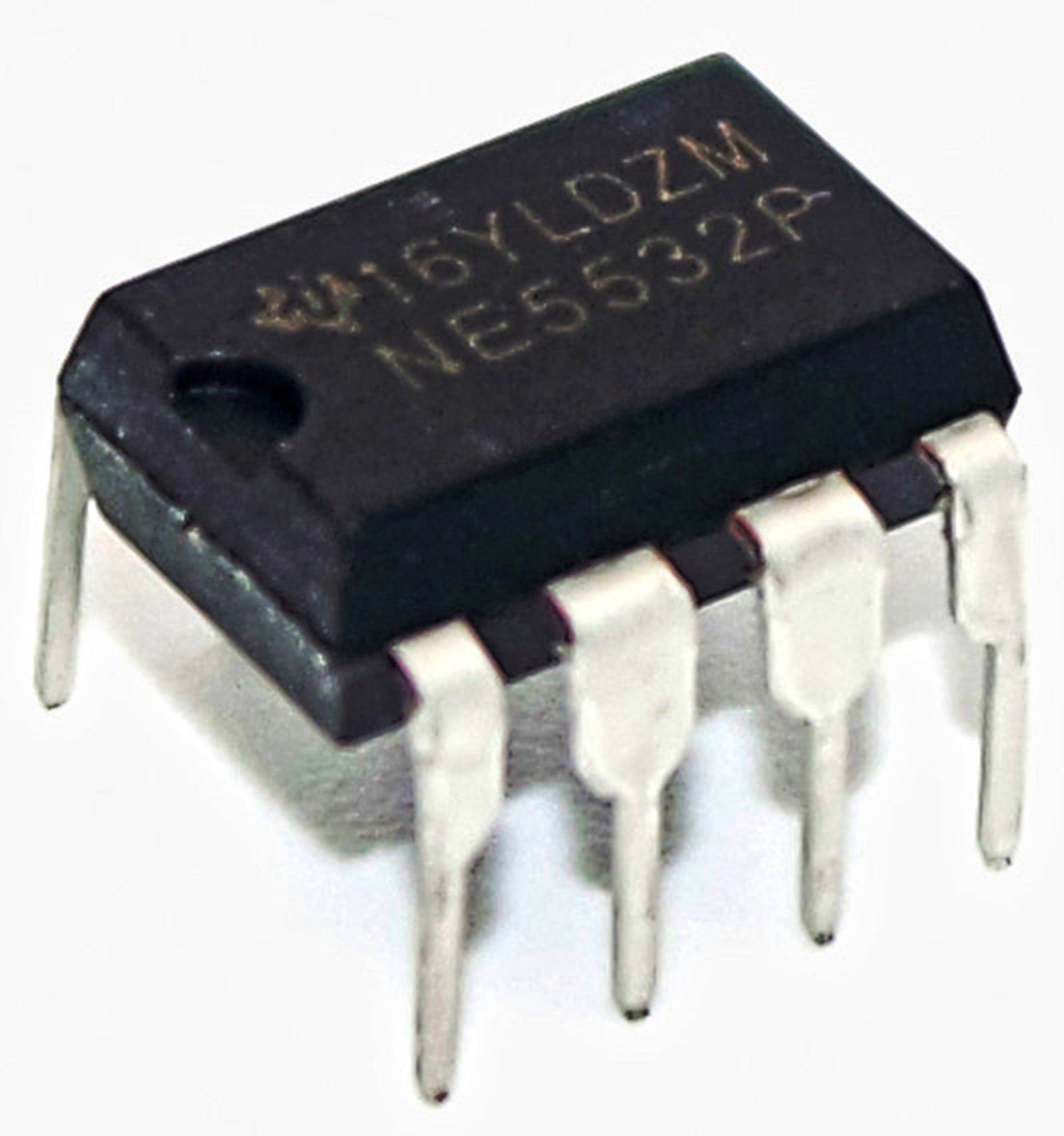

5 x NE5532 DIP8 Dual Low Noise Audio Operational Amplifiers Throuhg Hole
A pack of 5 high-performance NE5532P DIP8 dual op amps, designed for precision audio and signal applications where low noise and distortion are critical.
These through-hole op amps offer excellent DC and AC characteristics, making them ideal for use in high-fidelity audio, professional sound equipment, and instrumentation.
- Product: NE5532P Dual Low Noise Operational Amplifier
- Type: DIP8 Dual Op Amp – Through Hole
- Quantity: Set of 5 ICs

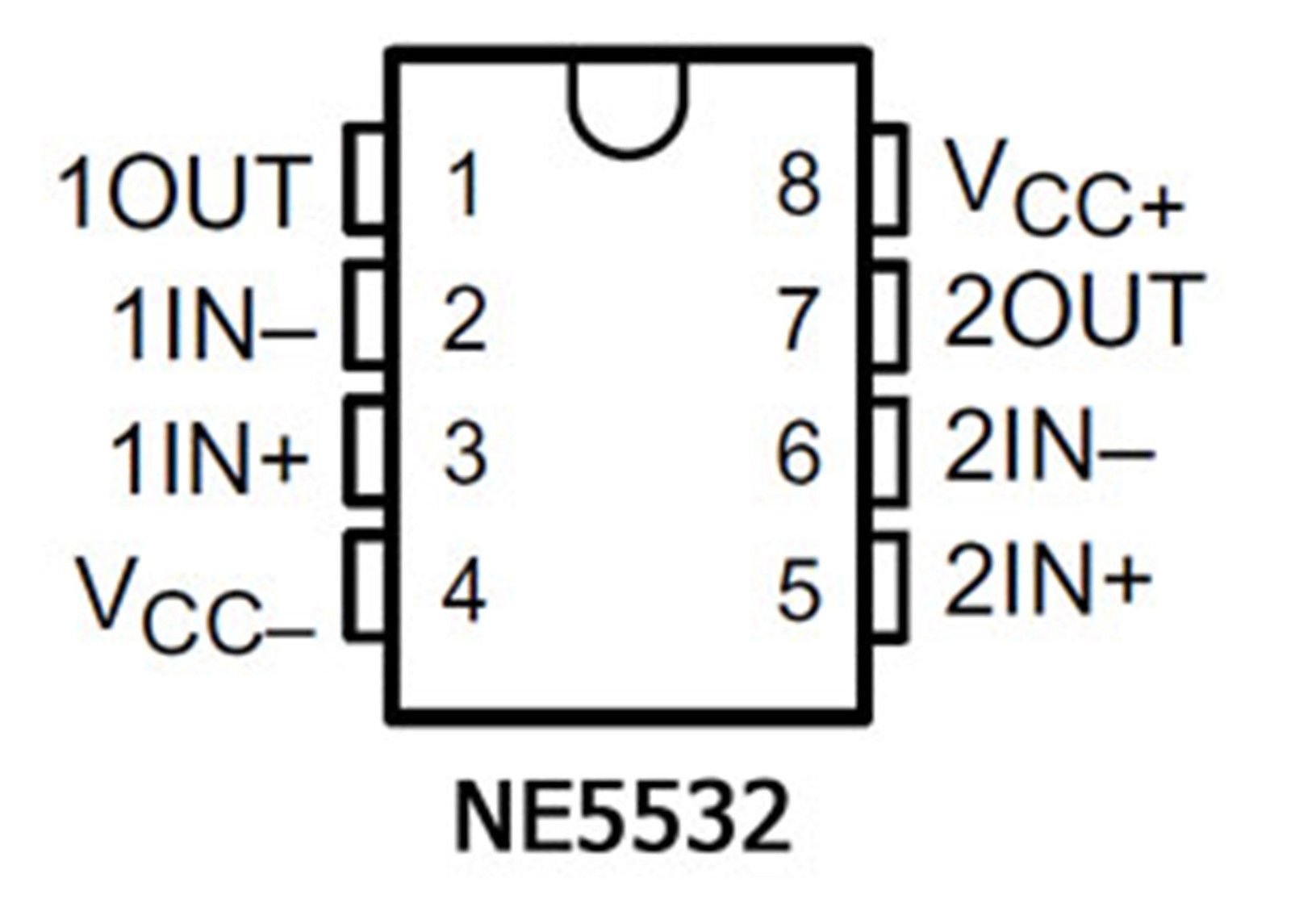

- Package: DIP-8 (Dual Inline Package, 8-pin)
- Dual-channel design for stereo and dual-signal processing
- Very low noise: 5 nV/√Hz at 1 kHz
- Internally compensated for unity gain
- High slew rate and output drive capability
- Protected inputs and short-circuit safe outputs
Specifications:
- Input Noise Voltage: 5 nV/√Hz (typ @ 1 kHz)
- Unity-Gain Bandwidth: 10 MHz (typ)
- CMRR: 100 dB (typ)
- Voltage Gain: 100 V/mV (typ)
- Output Swing: ±13 V (typ) at ±15 V supply, RL = 600 Ω
- Slew Rate: 9 V/μs (typ)
- Power Supply Range: ±3 V to ±20 V
- Mounting: Through Hole
What’s Included:
- 5 x NE5532P Dual Low Noise Op Amps – DIP8 Through Hole
Great For:
- High-fidelity audio preamps and mixers
- Equalisers and filters
- Active crossovers and tone control circuits
- Signal processing and instrumentation
- DIY audio amplifier projects
Usage Tips:
- Ideal for use in both professional and hobbyist audio applications
- Compatible with standard DIP8 sockets and PCBs
- Keep layout clean for optimal noise performance
- Use with proper decoupling caps for stable operation
