Description

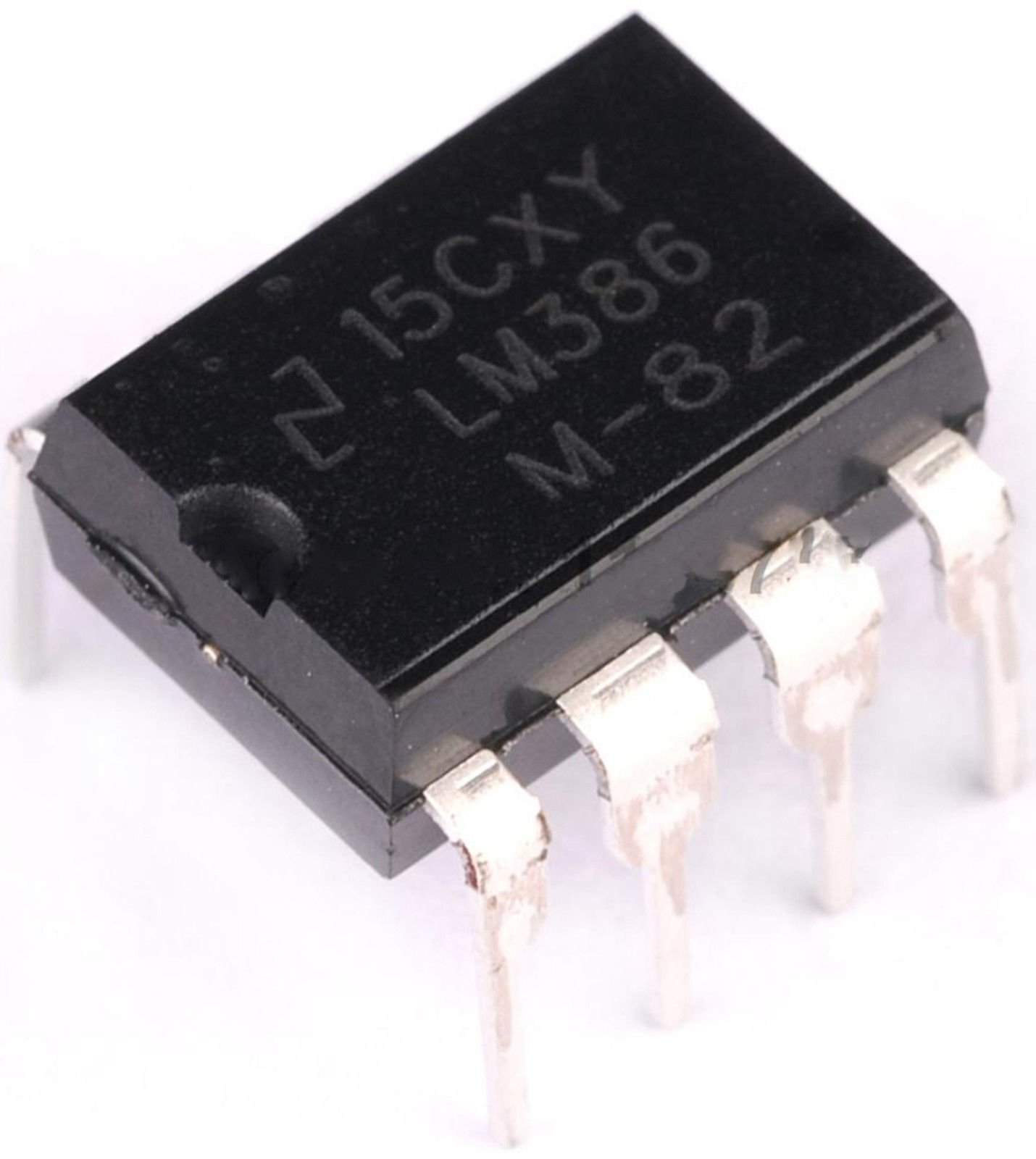

This pack of 5 x LM386 DIP8 audio amplifier ICs is perfect for low voltage, battery-powered audio projects.
With a default voltage gain of 20 and the option to increase it up to 200 using external components, these ICs are compact, efficient, and incredibly versatile.
Designed for minimal external part count, the LM386 is ideal for DIY audio applications, hobbyist electronics, and educational kits.
- Package Type: DIP8 (Through Hole)
- Operating Voltage: 4V – 12V
- Quiescent Current Drain: Only 4mA
- Gain: Internally set to 20 (adjustable to 200 with external components)
- Input Type: Ground referenced
- Output Bias: Self-centering to half supply voltage
- Low Distortion: 0.2% (typical at AV = 20, 6V supply, 8Ω load, 1kHz)
What’s Included:

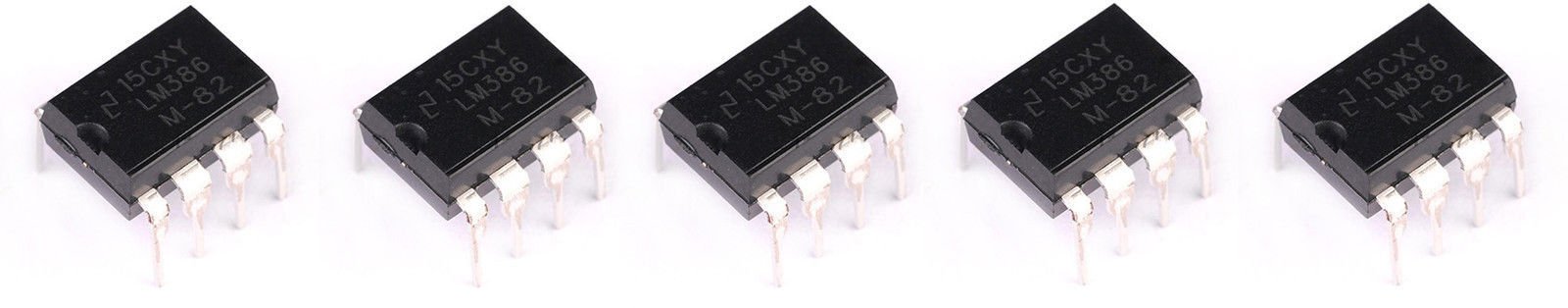

- 5 x LM386 DIP8 Low Voltage Audio Amplifier ICs (Through Hole)
Great For:
- Battery-powered audio projects
- Small speaker amplifiers
- Radios, intercoms, and voice recorders
- DIY kits and educational builds
- Low-power audio signal amplification
Usage Tips:

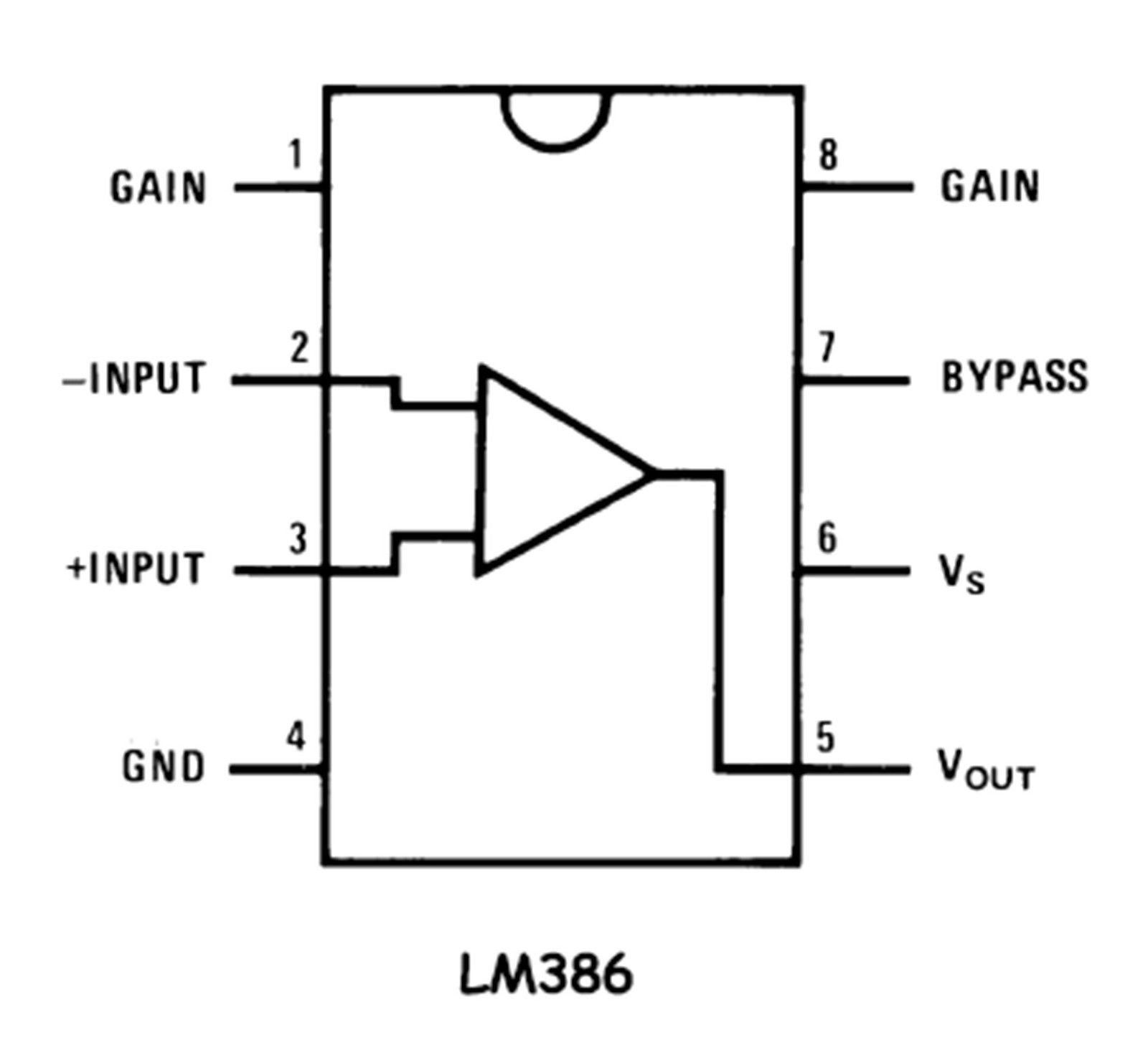

- Add a capacitor and resistor between pins 1 and 8 to increase gain
- Use with an 8Ω speaker and 6–9V supply for great audio output
- Compact size fits easily into breadboards and perfboards
