Description

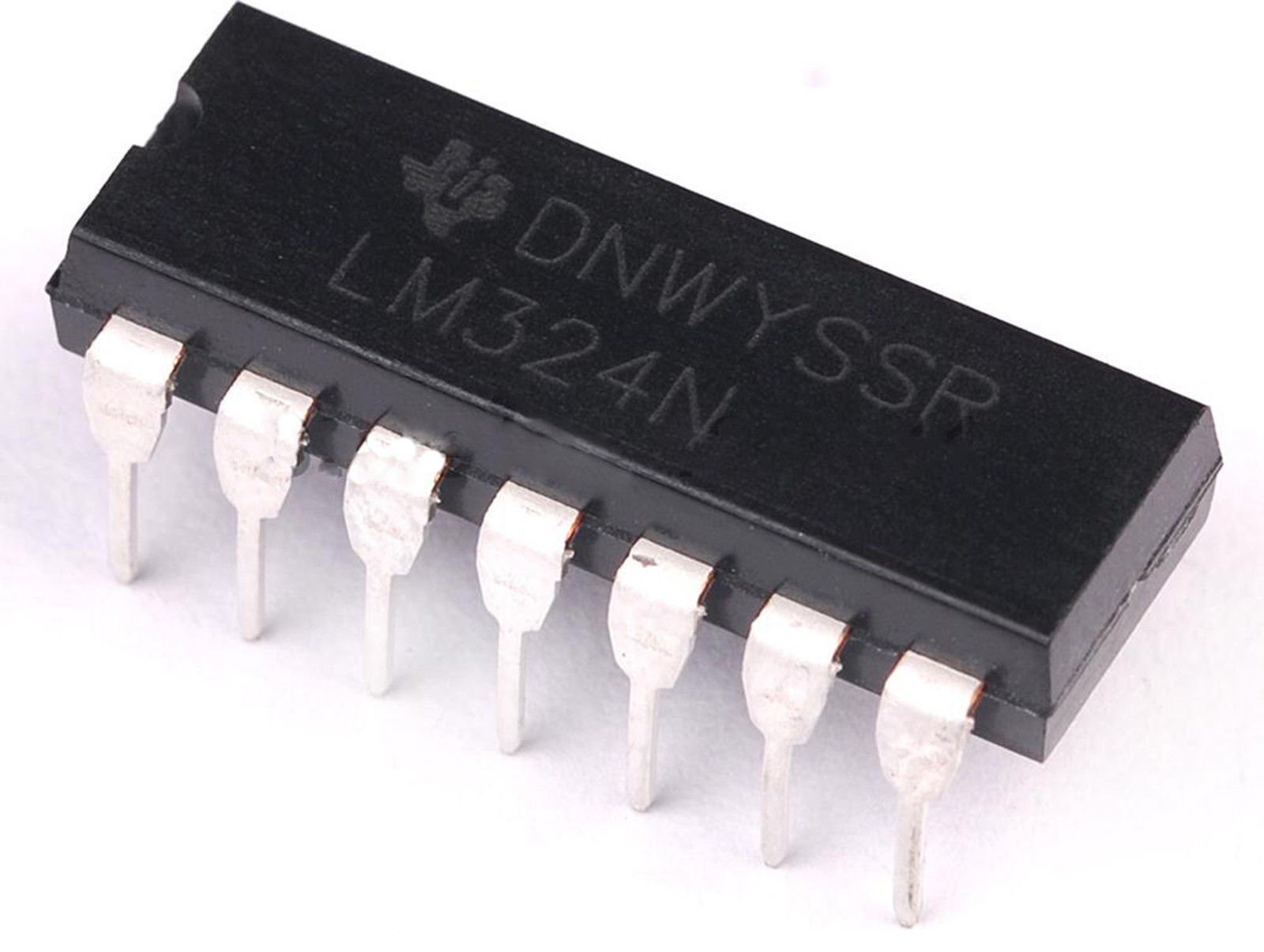

This listing is for 5 x LM324N low power quad operational amplifiers in DIP14 through hole packages.
Each IC contains four independent op-amps that are internally frequency compensated and ideal for a wide range of analog signal applications.
The LM324 operates with a single power supply and eliminates the need for dual rails, making it highly efficient and versatile for both hobbyist and professional designs.
- Product: LM324N Quad Op-Amp IC
- Package Type: DIP14 Through Hole
- Number of Amplifiers: 4 (Quad Op-Amp)
- Gain Bandwidth Product: 1.2 MHz (typical)
- DC Voltage Gain: 100 dB
- Input Offset Voltage: 2 mV (typical)
- Input Bias Current: 45 nA (typical)
- Offset Current: 5 nA (typical)
- Supply Voltage Range:
- Single Supply: 3V to 32V
- Dual Supply: ±1.5V to ±16V
- Low Supply Current Drain: 700 µA (independent of supply voltage)
- Input Common-Mode Voltage Range: Includes ground
- Internally Compensated: Yes, for unity gain
What’s Included:
- 5 x LM324N Quad Op-Amp ICs (DIP14)
Ideal For Applications Such As:
- Signal amplification
- Voltage comparators
- Oscillator circuits
- Precision rectifiers
- Analog processing circuits
- Hobbyist prototyping and electronics learning
Features:
- Quad op-amp in one package
- Works with single or dual supply
- Low power consumption
- Internally frequency compensated
- Compatible with standard DIP14 sockets
