Description

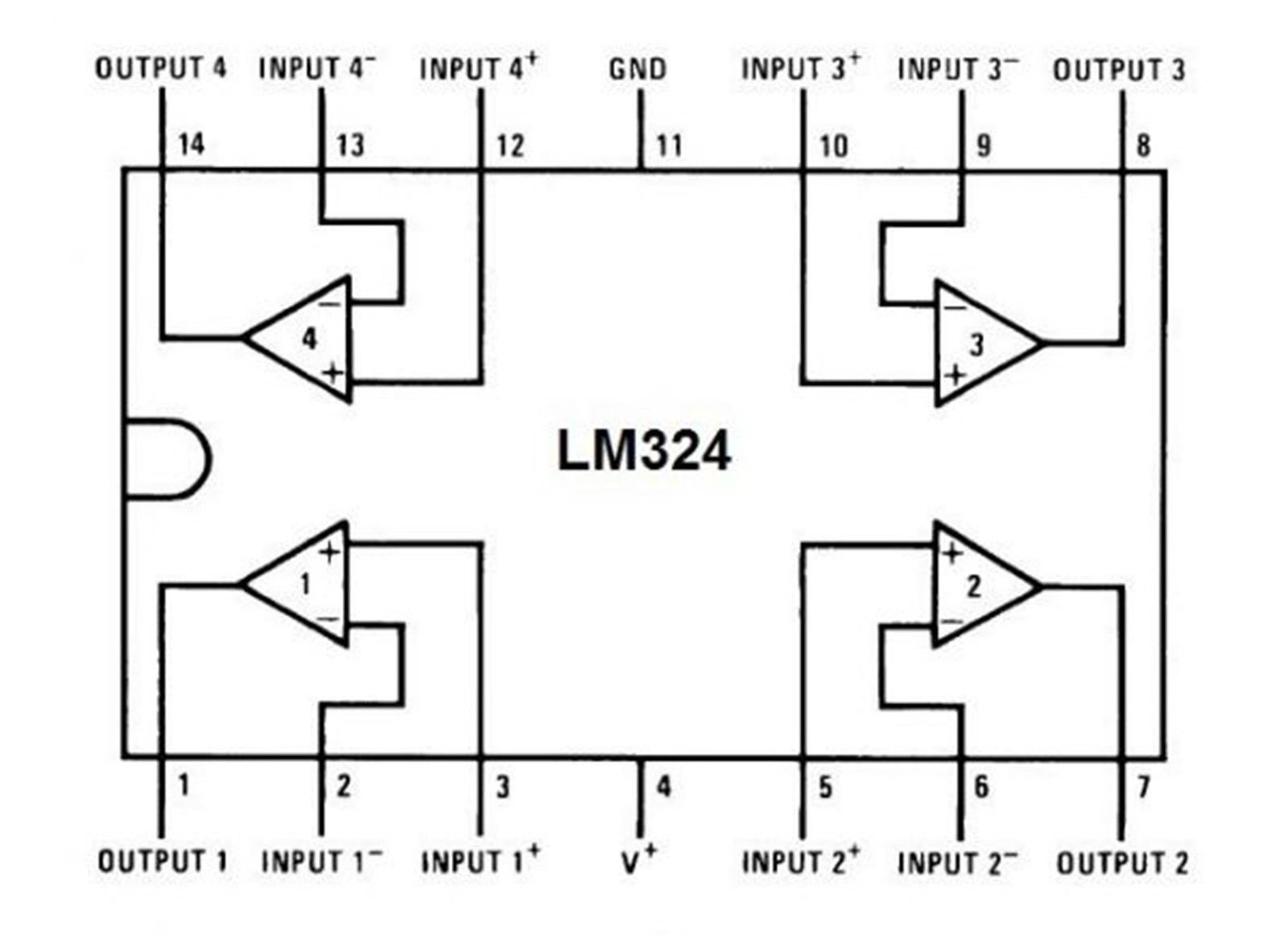

The LM324 SOP14 is a versatile 14 pin IC featuring four independent, internally frequency-compensated operational amplifiers (op-amps) in a single surface mount package.
Designed for single supply operation, it eliminates the need for dual power supplies while offering high gain and low power consumption.
Ideal for a wide range of analog applications including amplification, comparison, oscillation, and signal conditioning, the LM324 simplifies implementation in consumer, industrial, and automotive electronics.
- Type: Quad Operational Amplifier (Op-Amp)
- Part Number: LM324DR
- Package: SOP14 Surface Mount
- Supply Voltage Range: Single supply 3V to 32V or dual supplies ±1.5V to ±16V
- Supply Current: Low power, 700 µA typical
- Input Bias Current: 45 nA typical
- Input Offset Voltage: 2 mV typical
- Input Offset Current: 5 nA
- Input Common-Mode Voltage Range: Includes ground
- Voltage Gain: Large DC gain, approx. 100 dB
- Frequency Compensation: Internal, unity gain stable
What’s Included:

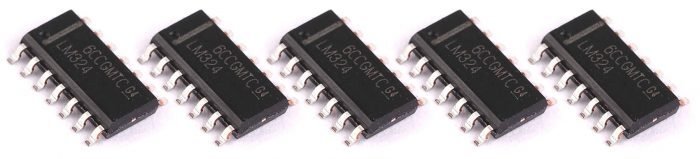

- 5 x LM324 SOP14 Low Power Quad Op-Amp ICs (Surface Mount)
Great For:
- Analog Signal Amplification
- Voltage Comparators
- Oscillators & Waveform Generators
- Active Filters & Signal Conditioning
- DIY Electronics & Professional PCB Designs
- Battery-Powered & Low-Power Circuits
Usage Tips:
- Single-supply operation simplifies power requirements
- Surface mount SOP14 package for compact PCB layouts
- Suitable for a wide variety of analog signal processing tasks
- Ensure proper soldering and pin orientation for best results
