Description
This pack includes 5 x CD4060 ICs versatile 14-bit ripple carry binary counter/dividers with built in oscillator circuits, ideal for timing, frequency division, or clock generation applications in digital electronics.
The CD4060 features a wide operating voltage range and can be configured as either an RC or crystal oscillator.
A dedicated RESET input instantly clears the counter and disables the oscillator when driven high.
- Part Number: CD4060
- Function: 14-Bit Binary Counter with Onboard Oscillator
- Package: DIP16 – Through Hole
- Counting Range: 0 to 16383 (Decimal)
- Operating Voltage: 3V – 18V
- Typical Voltages: 5V, 10V, 15V
- Max Clock Frequency: 30MHz at 15V
- Reset Propagation Delay: ~25ns @ 5V
- Logic Type: CMOS
- Configuration: Master-slave flip-flops with asynchronous reset
- Oscillator Type: RC or Crystal compatible
What’s Included:

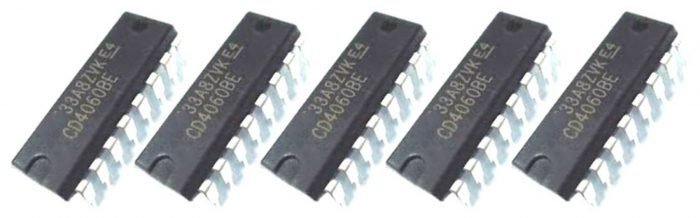

- 5x CD4060 14-Bit Counter/Oscillator ICs (DIP16)
Great For:
- Clock generation and frequency division
- Time delay circuits and programmable timers
- DIY electronics, logic circuits, and automation projects
- Educational and STEM kits
- Replacing NE555-based timer circuits in some cases
Usage Tips:
- Combine with external resistors/capacitors or crystals to create precise timing sources
- Use the RESET pin for controlled startup

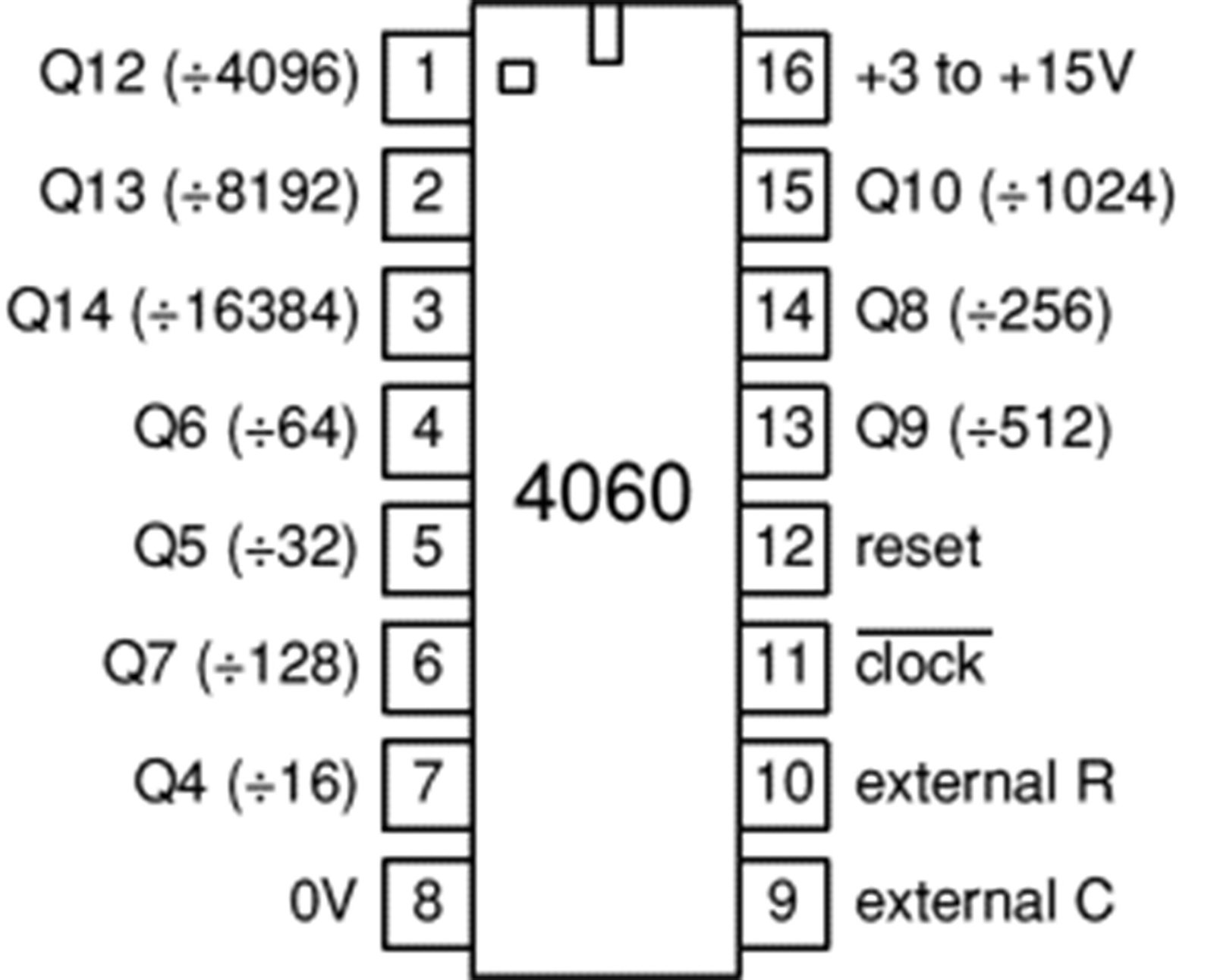

- Output taps provide divided clock frequencies from the oscillator
