Description
This listing includes 5 x CD4052BE Multiplexer Demultiplexer ICs in DIP16 through hole package, ideal for analog and digital signal routing applications.
Perfect for use in signal switching, audio control, instrumentation, or microcontroller projects.

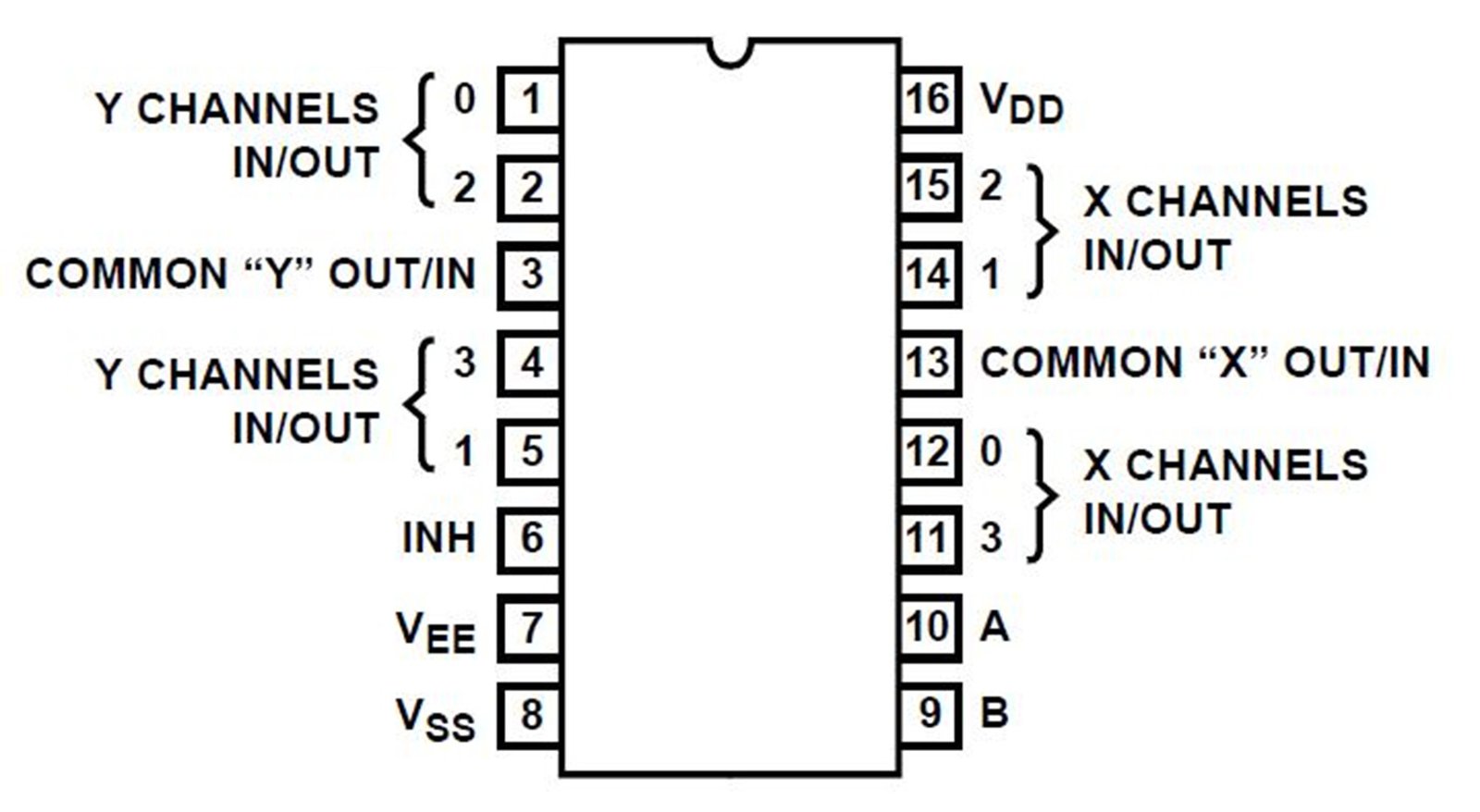

The CD4052BE is a dual 4 channel differential analog multiplexer with two binary select inputs (A, B) and one inhibit input, capable of connecting up to four pairs of inputs to their respective outputs.
- IC Type: CD4052BE
- Function: Dual 4-Channel Analog Multiplexer / Demultiplexer
- Package: DIP16 Through Hole
- Signal Range: Digital 3V – 15V, Analog up to 15Vp-p
- Low ON Resistance: ~80Ω typical @ VDD – VEE = 15V
- High OFF Resistance: Channel leakage ±10pA typical @ VDD – VEE = 10V
- Control Inputs: 2 Binary Select (A, B) + 1 Inhibit
- Differential Signal Capability
What’s Included:
- 5 x CD4052BE Dual 4-Channel Analog Multiplexer ICs (DIP16)
Great For:
- Signal routing and switching
- Audio multiplexing
- Instrumentation systems
- Microcontroller interfacing
- Analog signal control
- Educational electronics & prototyping
Usage Tips:
- Connect VDD/VSS to your logic supply (e.g. 5V or 12V depending on application)
- Use control inputs A and B to select which channels are active
- Inhibit input disables all switches when high
- Suitable for both analog and digital signals
