5 x CD4051 DIP16 CMOS Single 8-Channel Analog Multiplexer/Demultiplexer Through

Description

The CD4051BE is a high performance single 8 channel analogue multiplexer/demultiplexer in a DIP16 through hole package.

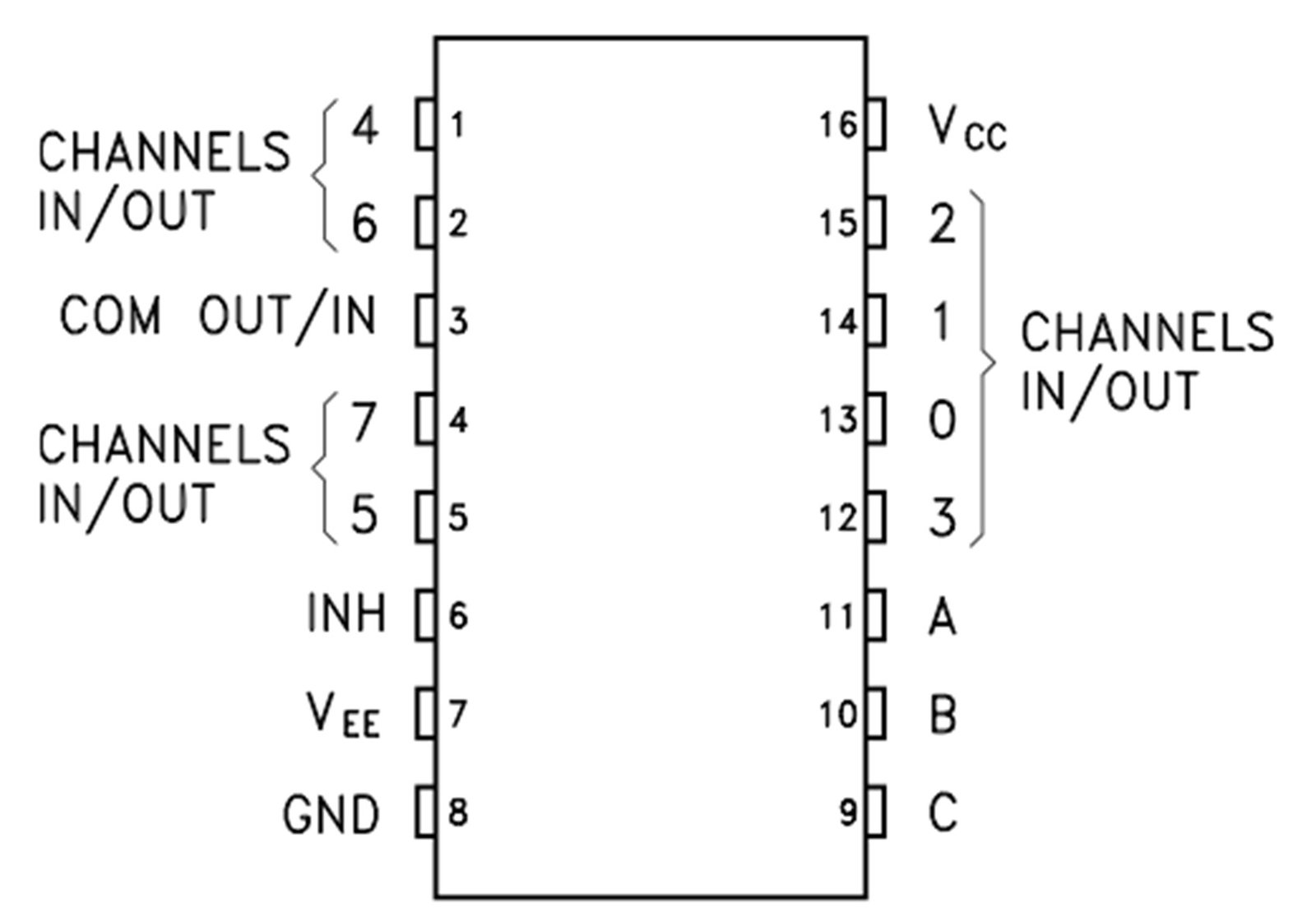

This versatile IC allows one of eight inputs to be connected to a single output line, controlled by three binary address inputs (A, B, C) and an inhibit line.

Perfect for both digital and analogue signal routing, it’s widely used in audio switching, sensor selection, and data acquisition projects.

• Package: DIP16 – Through Hole
• Channels: 1 x 8 (Single 8-channel mux/demux)
• Control Inputs: A, B, C + Inhibit
• Voltage Range: Digital 3V to 15V, Analogue up to 15Vp-p
• Low ON Resistance: ~80Ω (typ.) @ VDD − VEE = 15V
• High OFF Resistance: ~±10pA (typ.) leakage @ VDD − VEE = 10V
• Address Decoding: On-chip binary decoding
• Compatible With CMOS Logic

Included:

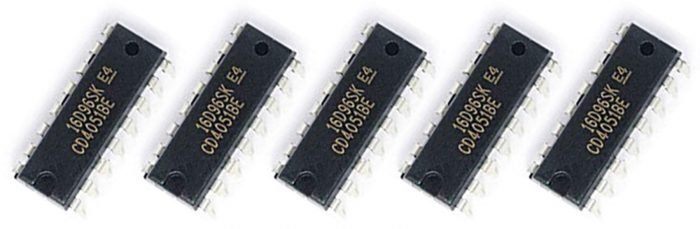

• 5 x CD4051BE DIP16 8-Channel Multiplexer ICs

Applications:

• Audio signal routing
• Sensor matrix selection
• Data acquisition systems
• Multiplexed analogue signal reading
• DIY electronics & Arduino/MCU projects
• Educational lab setups
